Singer Bobbin Case Master Guide: Types, Installation, Maintenance & Solutions

1. Introduction to Singer Bobbin Cases

Every stitch your embroidery machine creates is powered by a silent, spinning hero: the bobbin case. Often overlooked, this small component is the backbone of stitch quality, tension consistency, and machine longevity. Whether you’re a seasoned embroidery pro or a passionate hobbyist, understanding your bobbin case unlocks smoother sewing, fewer headaches, and more beautiful results.

In this guide, we’ll unravel the essentials of Singer bobbin cases—how to identify the right type, install it correctly, maintain it for peak performance, and troubleshoot common issues. We’ll also explore model compatibility, tension adjustment, and practical solutions for jams or misalignment. By mastering bobbin case management, you’ll not only safeguard your machine but also elevate every project with crisp, reliable stitches.

Table of Contents

• 1. Introduction to Singer Bobbin Cases
• 2. Identifying Singer Bobbin Case Types and Compatibility
• 3. Installing Bobbin Cases Correctly Across Singer Models
• 4. Maintaining and Caring for Your Bobbin Case
• 5. Advanced Bobbin Tension Adjustment
• 6. Troubleshooting Common Bobbin Case Issues
• 7. Replacement and Sourcing Advice
• 8. Conclusion: Optimizing Your Singer Machine
• 9. Frequently Asked Questions (FAQ)

2. Identifying Singer Bobbin Case Types and Compatibility

Choosing the correct bobbin case for your Singer sewing machine is more than a matter of fit—it’s the difference between flawless stitches and frustrating jams. Let’s break down the essentials, from key differences between popular bobbin classes to foolproof verification methods.

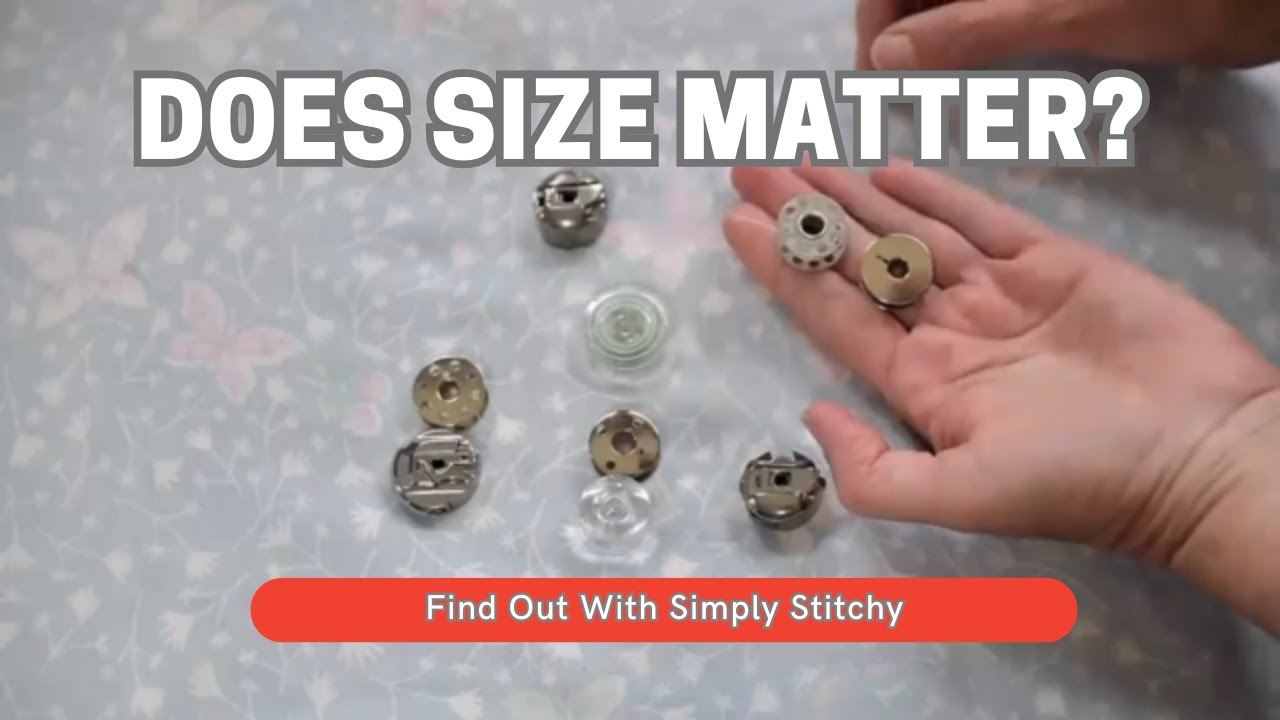

2.1 Class 15 vs. Class 66: Critical Differences

The two most commonly confused bobbin types—Class 15 and Class 66—may look similar, but their differences are crucial for machine compatibility and stitch quality.

Visual Clues:

- Class 15 plastic bobbins are often transparent with a faint blue tint and have a slightly curved top and bottom.

- Class 66 bobbins—plastic or metal—feature a more pronounced curve on both sides.

Loading Differences:

- Class 15 bobbin cases are typically top-loading, with the bobbin sitting horizontally and visible during use.

- Class 66 bobbin cases are inset, often requiring precise alignment within the machine.

Why does this matter?

Using the wrong bobbin—even if it seems to fit—can cause the bobbin to sit too high or too low, leading to jams, skipped stitches, or tension nightmares. As YouTube demonstrations show, a Class 66 bobbin may "wobble" inside a Class 15 case, while a Class 15 bobbin can sit "proud" in a Class 66 case, both resulting in poor stitch formation.

2.2 Model-Specific Compatibility Guide

Singer models vary widely in their bobbin requirements. Here’s a quick reference to help you match bobbin class to machine:

Special Cases:

- Featherweight models (221, 222) use unique bobbins incompatible with both Class 15 and 66.

- 15-91 requires an 11 o’clock bobbin case (part #125291) with a left-positioned tension arm.

Risks of Mismatching:

A mismatched bobbin case can lead to jams, tension failures, and even machine damage. Always consult your manual or a verified compatibility chart before substituting bobbin types.

2.3 Verification Methods and Tools

Still unsure? Here’s how to confirm you’ve got the right bobbin case:

1. Check the Machine Manual: Singer’s manuals specify the required bobbin class and case type for each model.

2. Measure the Bobbin: Use calipers to verify height and diameter match Singer’s specifications.

3. Inspect the Bobbin Case:

- Top-loading cases (horizontal bobbin) are common in Class 15 machines.

- Inset cases (vertical or angled bobbin) are typical for Class 66.

4. Visual Shuttle Inspection: Identify whether your machine uses a horizontal (top-loading) or drop-in (inset) system. YouTube tutorials highlight the importance of checking the "finger" position—some Class 15 cases have a finger at 11 o’clock, others at 1 o’clock.

Pro Tip: If the bobbin sits flush and spins smoothly in the case, you’re likely on the right track. Any "wiggle room" or protrusion is a red flag.

3. Installing Bobbin Cases Correctly Across Singer Models

A perfectly matched bobbin case means nothing if it’s installed incorrectly. Each Singer model has its quirks, but with the right steps, you’ll avoid jams and ensure silky-smooth sewing.

3.1 Front-Loading System Installation

Step-by-Step for Apollo/1-Series and Similar Models:

1. Prepare Your Machine:

- Turn off the machine and raise the presser foot.

- Remove the extension table if present.

2. Access the Bobbin Area:

- For Apollo models, remove feed dogs for better visibility.

- Use a screwdriver to disengage the position finger holding the bobbin case.

3. Insert the Bobbin Case:

- Align the bobbin case with the hook’s lip and position bracket—ensure it “floats” without tightness.

- Place the bobbin so the thread unwinds clockwise.

- Guide the thread through the slit and under the tension spring.

4. Secure and Test:

- Insert the case until it clicks into place.

- Turn the handwheel counterclockwise—if the needle moves freely without striking the case, you’re golden.

how to use an embroidery machine

YouTube Insight: Always check the latch positioning. For Singer 700 series, the latch should point in the direction of sewing and be fully engaged. A floating or misaligned latch can cause the case to “float around,” risking jams or dropped stitches.

3.2 Top-Loading (Drop-In) Technique

For Singer 3323, 4423, and Similar Models:

1. Access the Compartment:

- Slide the bobbin cover latch to the right and remove the cover.

2. Insert the Bobbin:

- Place the bobbin so the thread unwinds counterclockwise.

- Guide the thread through the needle plate slit and into the tension spring.

3. Final Adjustments:

- Trim excess thread or leave about 6 inches.

- Snap the cover back in place—listen for the satisfying “click.”

YouTube Tip: A properly installed drop-in bobbin should spin freely but not wobble. The transparent cover lets you monitor thread supply and helps prevent jams.

3.3 Critical Alignment Checks

Don’t skip this! Even a perfectly installed bobbin case can cause chaos if not aligned:

- Handwheel Test: Slowly turn the handwheel to ensure the needle clears the bobbin case. If you feel resistance or hear a “thump,” stop and realign.

- Latch Position: For front-loaders, the latch must be fully engaged and pointing away from you when closed. If it’s floating or misaligned, reposition and listen for a “click.”

- Common Pitfalls:

- A bobbin case not butted against the position bracket can jam when you replace the plate.

- If the case is too tight, the plate may hold it in place, preventing proper movement.

Pro Tip: Practice inserting and removing the bobbin case with the machine off to build confidence and muscle memory—your future self will thank you when a jam strikes mid-project.

---

By mastering these essentials—identifying the right bobbin case, verifying compatibility, and installing with care—you’ll transform your Singer machine from “fussy” to “flawless.” Ready for the next step? Let’s keep those stitches running smooth!

4. Maintaining and Caring for Your Bobbin Case

A well-maintained bobbin case is the unsung hero behind every perfect stitch. Neglect it, and you’ll soon find yourself wrestling with skipped stitches, broken threads, or even costly repairs. Let’s dive into the essentials of cleaning, oiling, and tension spring care—because a little TLC goes a long way.

4.1 Cleaning Procedures & Debris Management

Lint is the silent saboteur of sewing machines. Over time, stray fibers, dust, and even tiny thread fragments accumulate in and around your bobbin case, threatening both stitch quality and machine health.

Step-by-step cleaning:

1. Remove the Bobbin Case: For models like the Singer 4411 or 4423, loosen the two screws above the bobbin case to access the area. Gently lift the case—if it feels stuck, tilt the latch or use a non-metallic tool (like a plastic spatula or makeup brush) to avoid scratches.

2. Evict the Lint: Use a stiff brush, makeup brush, or even a vacuum with a crevice tool to sweep away lint from the bobbin case, hook, and feed dog area. For stubborn debris, slide a thin business card or matchbook between the bobbin case and tension spring—no metal tools allowed! Pro tip from YouTube: Avoid canned air; it pushes lint deeper into the machine. Instead, brush or vacuum it out.

3. Inspect for Damage: Examine your bobbin case for cracks, plastic fuzz, or needle punctures. If you spot rough edges, gently sand them with 500-grit sandpaper. Also, check the hook (rotating ring) for burrs and smooth them out if needed.

4. Needle Check: A bent or dull needle can puncture your bobbin case. Replace needles every 8–10 hours of use or after any mishap.

Regular cleaning—ideally every 2–5 bobbins—keeps your stitches crisp and your machine humming happily.

4.2 Oiling Protocols and Frequency

Oiling is like a spa day for your Singer’s moving parts. Without it, friction builds up, leading to noise, skipped stitches, or even permanent damage.

How to oil your bobbin case:

1. Find the Oil Port: Look for a small center hole in your bobbin case—often containing a felt wick. This is the gateway for your sewing machine oil.

2. Apply the Oil: Use only sewing machine oil (never household oils). Place 1–2 drops into the center hole; the wick will distribute it where needed. If your machine has a rotating ring, add a drop between stationary and moving parts.

3. Frequency: Oil your bobbin case every 2–5 bobbins, or whenever you notice thread breakage, skipped stitches, or inconsistent tension. YouTube wisdom: When in doubt, err on the side of a little oil, not a lot—and never use WD-40 or similar products.

4. Professional Servicing: For deep-cleaning and oiling areas you can’t reach, find reliable embroidery machine repair near me for professional servicing every six months if you sew daily.

4.3 Tension Spring Maintenance

The tension spring is a tiny but mighty component, responsible for regulating your bobbin thread’s flow. If it’s bent or damaged, expect headaches—uneven stitches, thumping noises, or even jams.

Here’s how to keep it in shape:

- Inspect Regularly: Look for signs of bending or wear. A bent spring can often be gently reshaped, but if it’s damaged or causing persistent thumping noises, it’s time to replace it.

- Reshaping/Replacement: Use fine-tipped pliers to carefully reshape a slightly bent spring. If the spring is beyond repair, replace the entire bobbin case—partial fixes rarely last.

- Symptom Watch: Loud thumping noises during sewing often signal a spring issue. Address it promptly to avoid further damage.

Bonus Maintenance Tips:

- Always use high-quality thread to minimize breakage and tension problems.

- Store your bobbin case in a clean, dry place when not in use.

- Never use metal tools for cleaning—scratches can ruin the case’s performance.

A little attention to cleaning, oiling, and spring care will keep your Singer sewing smoothly for years to come.

5. Advanced Bobbin Tension Adjustment

Ready to level up your stitch game? Fine-tuning bobbin tension is the secret sauce for professional results, especially when switching between thread types or tackling specialty projects.

5.1 Fine-Tuning for Thread Types

Different threads, different rules. Here’s how to dial in perfect tension for any material:

1. Identify Your Bobbin Case:
- Class 15J/15: Curved sides, adjustable screw.
- Drop-In Cases: Common in modern machines; adjustment screw near the leaf spring.
- Preset Tension Cases: Some, like those for machine embroidery software users working with 60 wt threads, can’t be adjusted.

2. Adjust in Tiny Increments:
- For heavy-duty threads, slightly loosen the tension screw (counterclockwise).
- For thin threads, tighten the screw (clockwise).
- Use 1/8 to 1/4 turn increments—small changes make a big difference.

3. Test on Scrap Fabric:
- If you see loops on the fabric’s underside, the upper thread is too loose—tighten bobbin tension.
- If the bobbin thread shows on top, the upper thread is too tight—loosen bobbin tension.

4. Mark Your Settings: Use a permanent marker to note the screw’s starting position. This makes it easy to return to baseline if needed.

YouTube insight: When adjusting drop-in bobbin cases, always test after each tweak. It may take a few tries to strike the perfect balance.

5.2 Achieving Balanced Stitches

Balanced stitches are the holy grail—where upper and lower threads lock together invisibly within the fabric.

How to get there:

- Visual Inspection:
- Loops on the back? Tighten bobbin tension.
- Bobbin thread visible on top? Loosen bobbin tension.
- Puckering fabric? Loosen both upper and bobbin tension.

- Always Test on Scraps: Before starting your project, run test stitches on similar fabric. This saves you from unpleasant surprises mid-seam.

- Set a Reference: Once you achieve perfect stitches, note your upper tension dial setting for future reference.

5.3 Enhancing Fabric Stability for Garment Embroidery

When embroidering garments, fabric stability is everything. Uneven tension or slippage can turn a beautiful design into a frustrating mess. That’s where the MaggieFrame magnetic embroidery hoop comes in—a game changer for garment hooping.

Why MaggieFrame stands out:

- Even Tension, Every Time: The powerful magnetic system automatically adapts to different fabric thicknesses, holding layers firmly in place. Say goodbye to puckering and distortion.

- Speed and Efficiency: Compared to traditional screw-based hoops, MaggieFrame enables hooping up to 90% faster—think 30 seconds instead of 3 minutes per garment.

- Durability that Lasts: Crafted from high-grade PPSU engineering plastic and equipped with N50-grade magnets, MaggieFrame hoops are 40 times more durable than ordinary plastic hoops.

- No More Hoop Burn: The magnetic force distributes pressure evenly, eliminating the hoop marks that can mar finished garments.

- Versatility: Available in over 17 sizes, MaggieFrame hoops fit most commercial and industrial embroidery machines. Whether you’re working with delicate silks or thick denim, you’ll enjoy stable, consistent results.

For anyone serious about garment embroidery, MaggieFrame isn’t just a tool—it’s an upgrade to your entire workflow.

6. Troubleshooting Common Bobbin Case Issues

Even the most seasoned sewists hit the occasional snag. Here's how to tackle the most common bobbin case headaches—fast.

6.1 Resolving Thread Jams and Tangles

Nothing derails a project faster than a thread jam. Here's how to get back on track:

• Re-thread Everything: Remove the bobbin and upper thread, then re-thread both according to your machine's manual. Make sure the bobbin thread exits in the correct direction (usually to the left).
• Check Bobbin Winding: Unevenly wound bobbins cause tension chaos. Always wind bobbins evenly, using a single thread color, and avoid mixing leftovers from different projects.
• Clean the Bobbin Area: Lint buildup is a prime culprit for jams. Use a small brush or vacuum to clear out debris—never canned air, which pushes lint deeper.
• Test Before Sewing: After re-threading and cleaning, run a few test stitches on scrap fabric to ensure everything is moving smoothly. Especially crucial for embroidery machines for beginners: Always test before sewing at full speed.

6.2 Fixing Needle Strikes and Misalignment

A needle strike can be jarring—and potentially damaging. Here's how to prevent and fix it:

• Secure the Bobbin Case: Ensure the case is fully locked in place. The notch should align with the machine's groove, and the latch should be properly positioned.
• Inspect for Damage: Bent latches or misaligned cases can snag thread or deflect the needle. Gently adjust or replace as needed.
• Use the Right Needle: For thick fabrics like denim, switch to a heavy-duty or denim needle. Always insert needles fully and align per your machine's specs.
• Handwheel Test: Slowly rotate the handwheel to confirm the needle clears the bobbin case before sewing at full speed.

6.3 Preventing Fabric Distortion in Garment Work

Garment embroidery demands precision. Fabric slippage or distortion can ruin a design—and your mood. Enter MaggieFrame magnetic hoops for a frustration-free solution.

How MaggieFrame makes a difference:

• Slippage-Free Hooping: The magnetic clamping system holds multilayered fabrics securely, eliminating movement during embroidery.
• Defect Reduction: Users report a 15% decrease in embroidery defects compared to screw-based hoops, thanks to consistent tension and stable fabric placement.
• Labor Savings: MaggieFrame's quick setup and release save significant time, especially in mass production settings.
• Durability and Value: With 40x the durability of ordinary hoops, MaggieFrame reduces replacement costs and downtime.

If you're tired of puckered, misaligned, or distorted embroidery on garments, it's time to experience the MaggieFrame difference—and watch your productivity soar.

By mastering maintenance, tension adjustment, and troubleshooting, you'll keep your Singer sewing machine running at its best. And for garment embroidery, MaggieFrame magnetic hoops deliver the stability and efficiency professionals demand. Ready for smoother stitches and stress-free sewing? Let's keep those bobbins spinning!

7. Replacement and Sourcing Advice

When your Singer bobbin case starts acting up—whether it’s skipping stitches, jamming, or just feeling “off”—you’re faced with a classic question: repair or replace? And if you do need a new one, should you stick with authentic Singer parts or try a third-party alternative? Let’s break down your options so you can make the smartest choice for your machine and your wallet.

7.1 Authentic vs. Third-Party Parts

Choosing between genuine Singer bobbin cases and third-party replacements is a bit like picking between a name-brand and a generic cereal—both can work, but there are trade-offs.

Authentic Singer Parts: These are available directly from the official Singer store, with prices typically ranging from $8.99 (for a standard Class 15 case, often discounted from $15.99) up to $99 for high-end models like the XL100 or Quantum series. Going authentic means guaranteed compatibility, consistent quality, and peace of mind—especially if your machine is still under warranty.

Third-Party and Vintage Alternatives:

- Vintage Singer Parts: You’ll find replacement cases for classic models (like the 15-30 or 239) starting at $5.99. Some rare parts may run up to $52.99, and availability can be hit-or-miss. Explore used embroidery machines for sale platforms for rare components.

- SingerOnline: This online retailer covers a wide range, from $14.95 for basic models to $99 for premium or hard-to-find cases (such as the Featherweight 221/222 at $38.95).

- Wawak: Perfect for industrial users, with budget-friendly cases for models like the 20U and 120U priced between $4.95 and $6.95.

Warranty Considerations: SingerOnline, for example, offers a 90-day replacement guarantee for defective parts—a nice safety net if you’re experimenting with third-party options. However, using non-Singer parts may void your machine’s warranty, so check your manual before making the switch.

Key Takeaways:

- For casual sewists or those with newer machines, authentic Singer parts offer reliability and support.

- Vintage or industrial users may find better deals and wider selection from third-party sources.

- Always verify compatibility with your specific Singer model before purchasing.

7.2 When to Repair vs. Replace

Not every bobbin case hiccup means you need to toss it in the bin. Sometimes, a quick fix does the trick—but knowing when to repair and when to replace can save you frustration (and cash).

Repairable Issues:

- Tension Spring Replacement: If the latch spring breaks, it can often be swapped out without replacing the entire bobbin case.

- Latch Adjustment: Sometimes, the latch arm just needs to be reinstalled in the “up” position and secured with a screw to stop it from slipping.

When Replacement Is Best:

- Broken Latch: If the latch snaps completely, especially on vintage models, replica parts (like TFS Replica Bobbin Cases) are recommended.

- Worn Components: Persistent thread jams, misalignment, or a bobbin case that fits loosely may signal worn tension screws or hook assemblies—these are signs it’s time for a new case.

- Thread Gap Wear: As seen in Singer Heavy Duty models, if the thread gap is too tight or too loose and can’t be recalibrated, replacement is the safest bet.

Pro Tips from the Pros:

- Using inferior bobbins can cause the case to stick and break the latch—always opt for high-quality bobbins.

- If you’re unsure, consult your machine’s manual or a trusted repair tech. Sometimes a small file and a bit of emery cloth can smooth out minor nicks, but deep grooves or persistent issues call for a fresh start.

Bottom Line: If you’re constantly troubleshooting the same issue, or your bobbin case has visible damage or excessive play, don’t hesitate—replace it. You’ll enjoy smoother sewing and fewer headaches.

8. Conclusion: Optimizing Your Singer Machine

A well-chosen, properly installed, and carefully maintained bobbin case is the secret ingredient to flawless stitches and a happy Singer machine. Remember to identify the correct case for your model, follow precise installation steps, and keep up with regular cleaning and tension checks. Don’t overlook the importance of authentic parts and timely replacements. With these habits, you’ll ensure your Singer runs smoothly and your projects shine.

9. Frequently Asked Questions (FAQ)

9.1 Q: Can I use Class 15 bobbins in a Class 66 case?

A: No, mixing Class 15 and Class 66 bobbins is a recipe for trouble. Perplexity data and YouTube demonstrations reveal that diameter mismatches cause the bobbin to sit incorrectly, leading to jams, skipped stitches, and possible damage to your machine. Always match bobbin class to your case and model for smooth operation.

9.2 Q: Why does my bobbin thread keep breaking?

A: Frequent breakage is often due to an over-tightened tension screw or lint buildup inside the bobbin case. Follow proper maintenance protocols: clean out lint every few bobbin changes and adjust tension in small increments. If the problem persists, inspect for burrs or damage and consider replacing the case.

9.3 Q: How often should I clean my bobbin case?

A: Clean your bobbin case every 2–5 bobbins, as recommended by Perplexity oiling frequency and video tutorials. Regular cleaning prevents lint buildup, ensures smooth thread flow, and extends the life of both your bobbin case and your Singer machine.
