1. Introduction

Beloved in quilting circles, the Bernina Patchwork Edition 140 blends Swiss engineering, reliability, and a user-first layout. Whether you’re piecing your first quilt or refining patchwork skills, it delivers a robust toolkit to elevate results. This guide covers core specs, setup, stitch control, a head-to-head with the Activa 140, user insights, upkeep, buying tips, and advanced patchwork techniques.

2. Key Features and Specifications of Bernina Patchwork Edition 140

The 140 is a mechanical, full-size workhorse (about 15″ x 12″ x 8″) designed for general sewing, quilting, and patchwork. Stability, smooth operation, and direct control define the experience.

2.1 Core Mechanical Specifications

• Stitch options: straight, zigzag, blind hem, and select decorative patterns to cover most quilting and garment needs.
• Max stitch width: 5.5 mm; nine needle positions for precise seams and creative placement.
• Adjustable presser foot pressure for delicate silks through layered quilts.
• Stainless steel free arm for cuffs, sleeves, and tight curves.
• Drop feed for free-motion quilting and darning.

Users consistently praise its intuitive tension access, straightforward threading, dependable drop feed, and "very, very smooth" operation.

2.2 Quilting and Patchwork Capabilities

• Specialized presser feet:

• 20 Open Embroidery Foot for applique and decorative visibility.

• 39 Darning Foot for controlled free-motion quilting and darning.

• Confident fabric handling across batting, denim, or PVC thanks to adjustable pressure and drop feed.
• Embroidery limitation: the 140 does not support machine embroidery, hoops, software, or embroidery stitch customization.

This focused design makes it a specialist’s tool—doing a few things exceptionally well.

2.3 Accessories and Included Components

• Hard carrying case and accessory box for organized transport and storage.
• Presser feet: buttonhole (#3), zipper (#4), blind stitch (#5), open embroidery (#20), and darning (#39).
• Compatibility with Category C feet ensures a wide accessory ecosystem.
• A comprehensive 57–58 page instruction manual covers setup, threading, stitches, and troubleshooting; parts and support remain accessible.

If you later add garment embroidery on a compatible Bernina, a magnetic embroidery hoop can help stabilize fabrics.

3. Setup and Operational Mastery

Clear documentation and a logical layout make the 140 quick to learn.

3.1 Accessing Manuals and Initial Setup

• Manual availability: a 57–58 page instruction manual is widely accessible via manual libraries and authorized dealers; some sellers offer digital downloads.

Initial setup steps:

1. Unpack the machine, case, accessory box, power cable, foot control, and feet.
2. Connect power and foot control.
3. Switch on at the handwheel side to activate the light and machine.
4. Attach/remove the accessory box to switch between flatbed and free arm.

Dealers can supply replacements and accessories; if you use compatible embroidery models, you might also consider a bernina snap hoop.

3.2 Threading and Bobbin Techniques

• Spool caps: choose large/medium/small for the horizontal pin.
• Bobbin winding: thread through the rear guide and pre-tension stud, wind, then engage the winder; it stops automatically when full.
• Bobbin insert: install clockwise in the case, thread the slot and under the spring, and keep the cover lint-free for reliable sensing.
• Upper threading: raise the presser foot, follow the tension unit, take-up lever, and guides.
• Auto-threader: engage the black lever and pause at the gray bump before gently drawing the thread through the needle.

3.3 Stitch Selection and Presser Feet Optimization

• Select straight, zigzag, blind hem, or decorative stitches; the display shows the chosen stitch, foot, and basic settings.
• Adjust tension via the accessible wheel; align the red line for baseline, or tweak for specialty threads.
• Use the feed-dog button to drop dogs for free-motion and darning.
• For precise piecing, attach Patchwork Foot #37 for accurate 1/4" seams.
• Change feet with the lever after raising the needle and presser foot.

Regular cleaning of the bobbin area and tension unit, plus frequent needle changes, preserves stitch quality and longevity.

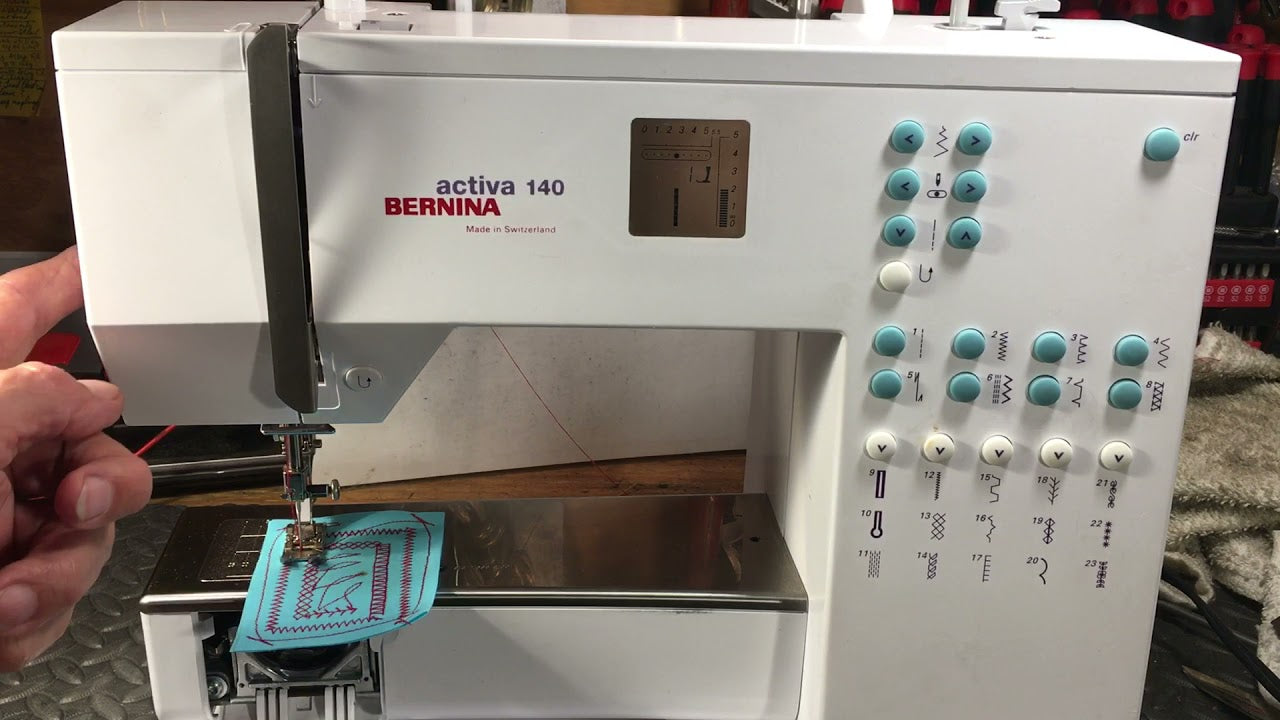

4. Bernina 140 vs. Activa 140: Comparative Analysis

Two Swiss-precise siblings with different specialties.

4.1 Functional Similarities and Internal Mechanics

• Identical internal mechanisms: same motor, stitch formation, and robust engineering.
• Full-size structure (15″ x 12″ x 8″), 5.5 mm max width, and nine needle positions.
• Low-mass hybrid hook (part plastic, part metal) yields smooth, consistent stitches; a scratched hook may be replaced with an all-metal version.
• Straightforward maintenance with accessible internals.

4.2 Critical Differences: Stitches and Target Audience

Manuals mirror the focus: Patchwork Edition emphasizes quilting, while Activa spans diverse sewing. If embroidery becomes core on other compatible Bernina machines, magnetic embroidery hoops for bernina can support stable fabric control.

4.3 Accessory Bundles and Long-Term Value

• Patchwork Edition: bundled quilting feet streamline setup for piecing and quilting.
• Activa 140: general-purpose feet better suit garment construction; aftermarket quilting feet can fill gaps.
• Both accept Category C feet for future expansion.

5. Real-World Performance and User Insights

5.1 Durability and Longevity Reports

Owners report reliable performance after more than 23 years of regular use, citing quiet, smooth operation and intuitive controls. The stainless steel free arm and robust build stand up to daily sewing. An extensive dealer network supports servicing and parts availability.

5.2 Quilting Performance with Diverse Fabrics

From delicate cotton to layered linen and even PVC (with a Teflon foot), adjustable pressure and the low-mass hook help prevent shifting and skipped stitches. Workspace suits home studios while maintaining versatility for piecing and free-motion quilting.

When tackling garment embroidery on compatible models, a magnetic hoop for bernina can further stabilize tough or slippery materials.

6. Troubleshooting and Maintenance Essentials

6.1 Resolving Needle Timing and Tension Issues

• Timing: Clear jams gently; if feed dogs and needle fall out of sync or needle alignment drifts, adjust with a Bernina eccentric tool and re-tighten. Persistent issues may indicate wear—seek professional service.
• Bobbin/thread: Rethread with thread held taut, confirm correct bobbin insertion, keep the bobbin area and tension discs clean, and avoid overfilling.
• General care: Calibrate the screen if needed, avoid complex internal repairs unless skilled, and consult the manual for twin-needle and accessory guidance.

6.2 Advanced Hooping Solutions for Garment Projects

MaggieFrame magnetic embroidery hoops secure fabric layers for garment work (not for caps/hats), reducing slippage and hoop burn and significantly cutting hooping time. Their even magnetic force protects fabrics and speeds repeatable placement. Many Bernina users seeking stability look to bernina magnetic hoops when working on compatible embroidery machines.

7. Purchasing Guide and Value Assessment

7.1 Market Availability and Pricing Trends

Introduced in 1998, the Bernina Patchwork Edition 140 remains a sought-after classic on the used market, typically ranging from $350 to $1,000 depending on condition, accessories, and recent service. Authorized dealers bring warranty confidence; online marketplaces offer broader selection but require careful vetting (photos, accessory lists, functional checks). Over 249 verified parts are still available through third-party suppliers, reinforcing long-term serviceability—plus room to add accessories like magnetic frames for embroidery machine if you later expand your toolkit with compatible equipment.

Key takeaways:

1. Prioritize condition, original accessories, and recent servicing.
2. Compare the 140’s simplicity and cost with advanced features in newer models.
3. Use authorized dealers for dependable repairs and parts.

7.2 Optimizing Workflow with Modern Accessories

For higher throughput on garment projects, MaggieFrame magnetic hoops and the HoopTalent station help with precise, repeatable placement, significant time savings, and fabric protection.

If your workflow includes compatible embroidery gear, a dedicated hooping station for machine embroidery streamlines batch production and reduces setup fatigue.

8. Advanced Patchwork Techniques

8.1 Fabric-Specific Settings for Complex Projects

• Cotton & precuts: size 80/12 universal; 2.5–3.0 mm stitch length.
• Batiks & silk: microtex needles; slightly lower tension to protect dense or delicate fibers.
• Layered/thick fabrics (denim, multi-layer quilts): walking foot with 90/14 denim needle; reduce foot pressure and use the free arm over bulky seams.

Pro tip: Keep the bobbin area clean, use the built-in thread cutter to trim bulk, and rethread with the presser foot up when tension goes off. For needle breakage, verify needle choice and avoid forcing thick stacks.

8.2 Specialized Presser Feet Applications

• Darning Foot #39: enables controlled free-motion quilting and intricate custom motifs.
• Twin-needle setup: parallel seams using a supplementary spool pin; choose compatible straight or decorative stitches for borders and sashing.
• Appliqué foot: supports narrow buttonholes and ribbon reinforcement for functional decoration.

For embroidery tasks on compatible Bernina machines, magnetic embroidery hoops for bernina improve stability during detailed stitching.

9. Conclusion

The Bernina Patchwork Edition 140 showcases Swiss precision and long-lived reliability. Its mechanical control, intuitive design, and Category C accessory ecosystem keep it relevant well beyond its release. Pairing the 140 with modern tools like MaggieFrame magnetic hoops and a hooping station (for compatible embroidery setups) can raise speed and consistency for garment projects. Invest thoughtfully, maintain regularly, and let your patchwork grow from confident seams to advanced artistry.

10. Frequently Asked Questions

10.1 Q: What types of stitches can the Bernina Patchwork Edition 140 perform?

A: It includes straight, zigzag, blind hem, and decorative stitches, plus quilting-focused options. It can handle typical quilting and garment needs but does not offer machine embroidery functions.

10.2 Q: Is the Bernina 140 suitable for sewing knits or delicate fabrics?

A: Yes. Adjustable presser foot pressure and nine needle positions help across silks, knits, and layered materials. Using appropriate needles (e.g., microtex for silk) improves results.

10.3 Q: How do I maintain my Bernina 140 for long-term reliability?

A: Clean the bobbin area, tension discs, and feed dogs frequently; replace needles regularly; unplug before service; follow the manual for cleaning and troubleshooting. Seek authorized service for complex repairs.

10.4 Q: Where can I find the user manual or troubleshooting guides for the Bernina 140?

A: The approximately 58-page instruction manual is available via manual libraries, authorized dealers, and sewing supply sites. Video tutorials offer helpful visual walkthroughs.

10.5 Q: Can I use modern presser feet or accessories with the Bernina 140?

A: Yes. It’s compatible with Category C presser feet, enabling a broad range of modern and specialty options for patchwork, quilting, and garments.

10.6 Q: How do I resolve needle timing or tension problems?

A: Gently clear jams, rethread with the presser foot up, confirm bobbin insertion, and clean lint. For timing, use a Bernina eccentric tool if qualified; otherwise, consult a technician.

10.7 Q: Are replacement parts and dealer support still available for the Bernina 140?

A: Yes. There are abundant third-party parts and strong dealer support, preserving serviceability years after purchase.

10.8 Q: Can the Bernina 140 be used for machine embroidery?

A: No. It does not support embroidery hoops, digitizing software, or automated embroidery functions. Consider embroidery-capable Bernina models for that work.

10.9 Q: What should I consider when buying a used Bernina 140?

A: Look for original accessories, recent servicing records, and verified working condition. Buying from authorized dealers adds peace of mind; online platforms require careful vetting.

10.10 Q: Where can I get help if I encounter issues not covered in the manual?

A: Online communities, dealer networks, and tutorial videos offer practical tips. For technical issues, rely on authorized Bernina technicians.
