Tajima TMBP-S1501C Expert Guide: Technical Deep Dive & Commercial Optimization Strategies

1. Introduction: Mastering Industrial Embroidery Efficiency

In industrial embroidery, efficiency is non-negotiable. The Tajima TMBP-S1501C elevates commercial production with a compact footprint, fast setup, and simplified care. Its 15-needle architecture and up to 1,200 stitches per minute (SPM) combine speed with precision, while robust maintenance features and modern connectivity support sustained, high-quality output. This guide explains the machine’s technical strengths, space-optimized design, and maintenance best practices to help you master industrial embroidery efficiency.

2. Technical Specifications: Powering High-Volume Production

2.1 Core Performance Metrics: 1200 SPM & 15-Needle Precision

Built for throughput, the TMBP-S1501C’s 15-needle configuration handles intricate, multi-color work without constant thread swaps. Running at up to 1,200 SPM, it completes complex patterns quickly and cleanly. A 360 mm x 500 mm field supports larger pieces such as jackets and duffel bags.

Ample onboard memory (up to 650 files and 40 million stitches) suits batch production. Flexible connectivity via USB, LAN, and Wi‑Fi enables smooth design transfer and remote operation to keep work flowing.

2.2 Advanced Automation Systems: Thread Management Redefined

Automation drives consistency and uptime. Automatic thread trimming and magnetic thread break detection reduce manual intervention, particularly in lint-heavy conditions where conventional sensors can struggle. Real-world use in jacket lines shows up to a 25% downtime reduction. The trimmer cuts excess thread mid-run, minimizing post-processing and helping operators focus on additional tasks. Together, these systems stabilize quality across fabrics and support a faster, more reliable line.

3. Operational Mastery: From Setup to Complex Configurations

3.1 Cap Embroidery Optimization: Achieving 1000 RPM Stability

Cap embroidery demands tight control at speed. The TMBP-S1501C’s cap driver system reaches 1000 RPM with precision, aided by a third locking pin that stabilizes materials and LED position markers for accurate placement. Pair the driver with the appropriate tajima cap frame to keep curved surfaces secure during high-speed stitching.

3.2 Preventive Maintenance Schedule: Extending Machine Lifespan

A preventive plan preserves performance and avoids costly downtime. Inspect and lubricate key parts—such as the W15-16[S] pulley and 22mm bearing cases—every 500 hours. Clean magnetic sensors to ensure consistent detection. Address software security considerations for cloud-based design management to protect data in connected workflows. Following this routine helps the machine deliver reliable results over the long term.

4. Space Optimization: Compact Design, Maximum Versatility

Space efficiency without compromise defines the TMBP-S1501C. Its streamlined cubical frame without sidewalls tucks into retail or light production spaces while still offering a 360 mm x 500 mm field. Despite a 30\" x 34\" x 66\" footprint, it handles both oversized items and delicate small-diameter work with ease.

4.1 Oversized Item Handling: Jackets & Duffel Bag Solutions

The open, cubical frame provides unobstructed access to large, bulky goods—duffel bags, jackets, even blankets—eliminating the constraints typical of sidewall machines. Case studies show up to a 30% improvement in workspace efficiency. With appropriate tajima hoops, bulky pieces stay accessible, aligned, and ready for consistent stitching.

4.2 Precision Small-Item Embroidery: Sock & Pocket Techniques

For tubular and small-diameter items like socks and pockets, the slim cylinder arm is a standout. Combined with magnetic hoops for tajima embroidery machines, it delivers distortion-free results even on stretch fabrics.

Selecting the right tajima hoop sizes, plus the reduced bobbin cover and smaller cylinder diameter, increases maneuverability. A 12mm clearance reduction helps reach confined areas for fine detail.

Integrating MaggieFrame magnetic hoops ensures consistent tension and alignment for pockets and other small zones. A dedicated tajima pocket frame further streamlines placement and quality on compact work areas.

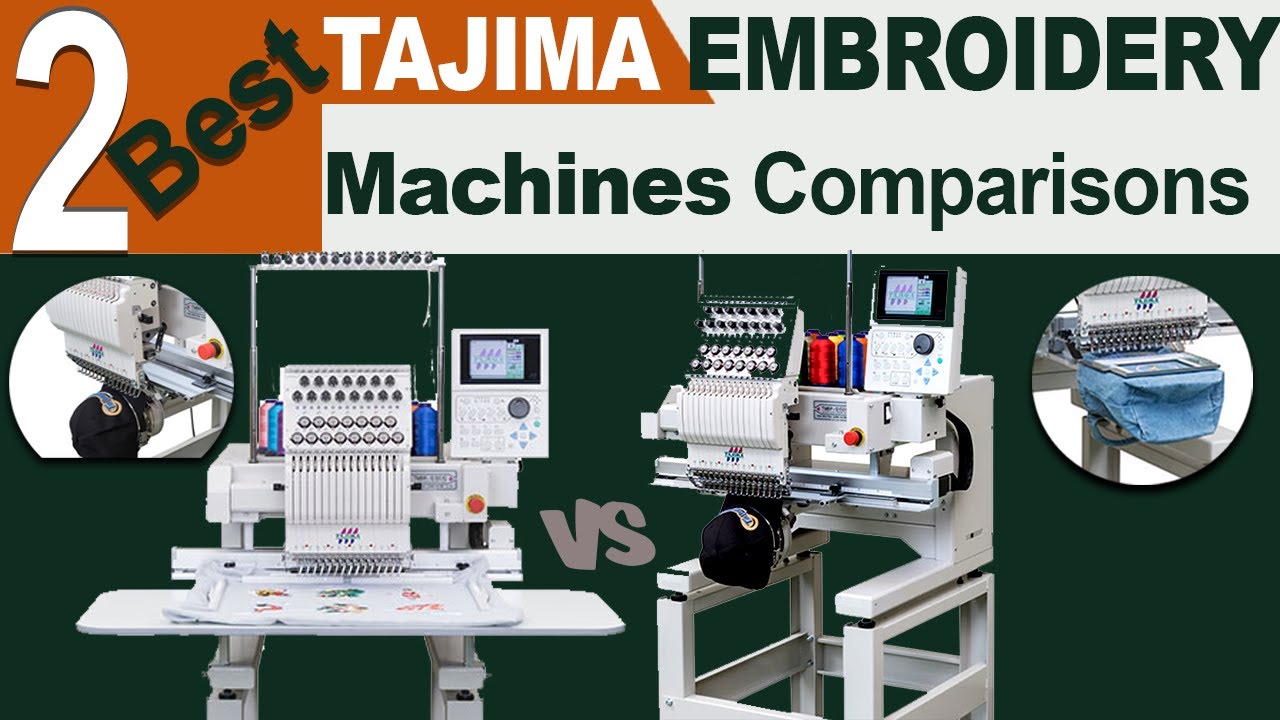

5. Competitive Edge: TMBP-S1501C vs TMBR-SC Analysis

Understanding the strengths of each model guides smarter purchasing and setup decisions. The TMBP-S1501C and TMBR-SC both target commercial use but prioritize different approaches to speed, stability, and materials.

5.1 Cap Production Showdown: 1000 RPM vs DCP Technology

The TMBP-S1501C excels at cap embroidery with a dedicated cap driver shaft and 1000 RPM throughput. Its slim cylinder supports small items like pockets and socks. The TMBR-SC emphasizes stability with a reinforced cap frame base and stabilized rotation shaft, helping reduce needle breakage. Its digitally controlled presser foot (DCP) adapts to thicker fabrics for bulk runs.

FS mode on the TMBP-S1501C optimizes metallic and loose-twisted threads, improving stitch quality and lowering breakage. While TMBR-SC lacks FS mode, its DCP technology balances tension across materials. Production data shows a 15% higher output with the TMBP-S1501C in retail environments, highlighting speed, precision, and cost-effectiveness for diverse, small-scale projects.

6. Upgrade Potential: Future-Proofing Your Investment

Staying ahead requires scalable connectivity and workflow control. The TMBP-S1501C includes features designed to integrate with networked operations and modern design management.

6.1 Network Integration: LAN/Wi-Fi Workflow Optimization

LAN and USB connectivity streamline design transfers and centralized control. With dual USB ports and one LAN port, direct transfers or network-based workflows are straightforward. Barcoding readiness accelerates design selection and automation, while a LAN-enabled architecture supports multi-machine coordination. Security considerations for cloud-based design management help safeguard your assets.

7. Conclusion: Strategic Implementation Checklist

To maximize ROI with the TMBP-S1501C, apply this focused, five-step plan:

1. Utilize FS Mode: Use FS mode for metallic and loose-twisted threads to enhance stitch quality and reduce thread breakage across materials.
2. Optimize Network Integration: Leverage LAN and USB connectivity for faster design transfers and smoother, centralized workflows that cut downtime.
3. Implement Preventive Maintenance: Inspect and lubricate the W15-16[S] pulley and 22mm bearing cases every 500 hours; clean magnetic sensors to maintain detection accuracy.
4. Capitalize on Space-Saving Design: Deploy the compact, sidewall-free frame to reclaim floor area while keeping a large embroidery field for diverse jobs.
5. Pair with tajima embroidery machine hoops: For garment embroidery, MaggieFrame magnetic hoops help deliver even tension and reduce hoop burn, elevating consistency and efficiency.

8. FAQ: Expert Answers to Common Challenges

8.1 Q: How can I troubleshoot thread tension issues?

A: Adjust the tension dials and confirm correct threading through all guides and discs. Clean tension discs regularly to remove lint and debris that disrupt consistency.

8.2 Q: How do I resolve the E-ring 3A8 error?

A: It typically signals a sensor issue. Check for obstructions or misalignments around the sensor and confirm cable connections. If it persists, consult the manual or technical support.

8.3 Q: What are the best practices for optimizing design storage?

A: Back up designs to external storage via USB, organize them into folders, and consider cloud-based storage for added security and accessibility.
