How to Create a PES File: Step-by-Step Guide with Free Tools

1. Introduction to PES Files and Embroidery Design

PES files are the secret language of embroidery machines—a digital blueprint that transforms your creative vision into precise, stitched reality. Unlike a simple image file, a PES file contains not just the “what” (your design), but the “how”—guiding your machine through every color change, stitch type, and movement. Creating a high-quality PES file is essential for crisp, professional embroidery results, whether you’re personalizing a denim jacket or launching a line of custom patches. In this guide, you’ll discover the essentials: what makes a PES file unique, how to craft your own using free and paid tools, and the step-by-step workflow from image to stitch-out. We’ll also explore troubleshooting tips and optimization strategies to help you avoid common pitfalls and achieve flawless results, every time.

2. What is a PES File? Format Essentials and Machine Compatibility

2.1 PES File Structure and Purpose

A PES (Pattern Embroidery Sequence) file is much more than a pretty picture—it’s a sophisticated, machine-readable instruction set designed primarily for Brother and Babylock embroidery machines. Think of it as a two-part hybrid: one side holds the design’s vector shapes, fill patterns, and editing metadata (the 'PES block'), while the other encodes the actual stitch sequences, color changes, and machine commands (the 'PEC block'). This structure allows for both creative flexibility in editing software and flawless execution on your embroidery machine.

Unlike raster images like JPEG or PNG, which are made of pixels, PES files store mathematical stitch coordinates, thread colors, and detailed parameters such as stitch density, direction, and underlay. This vector-based approach ensures that designs remain crisp and scalable, and that every stitch lands exactly where you intend. Compared to other formats like DST (which lacks color data), PES files retain all the thread color information—making them the gold standard for anyone using Brother or Babylock machines.

The beauty of the PES format lies in its backward compatibility: even as new features are added in later versions (like enhanced metadata in PESv4+), the core stitch data remains readable by older machines. This ensures your designs stitch out correctly, whether you’re running a classic PE-300 or the latest multi-needle powerhouse.

2.2 Machine Compatibility Guide

PES files are the native tongue for Brother and Babylock embroidery machines, but their reach extends further—covering select models from Bernina, Janome, and even some industrial brands. Here’s what you need to know before you hit 'export':

Key considerations:

- Hoop Size Constraints: Your design must fit within the machine’s maximum hoop area (e.g., 110mm for Babylock Accent). Oversized designs need to be split or resized.

- Version Requirements: Older machines (like PE-300/400) require PESv1 (#PES0001), while modern models (PE-800, SE600, PR-series) support newer versions (#PES0040, #PES0060) with advanced features.

- Export Settings: Always match your PES version to your machine’s requirements to avoid 'unexpected file format' errors.

- Color Management: PES files retain thread color data, unlike DST, making them ideal for projects where color accuracy matters.

By understanding these essentials, you can confidently create and export PES files that stitch beautifully—no matter which machine you’re using.

3. Step-by-Step PES File Creation Workflow

3.1 Design Preparation and Import

Every great embroidery project starts with the right image. Whether you’re working from a hand-drawn sketch, a logo, or a photo, the journey to a flawless PES file begins with careful prep:

- Choose the Right Source Image: For best results, select a high-resolution image (300+ DPI) in SVG, PNG, or JPEG format. SVGs (vector graphics) are ideal for crisp edges and scalability, while PNGs and JPEGs work well for simpler, less detailed designs.

- Adjust Contrast and Clean Up: Use embroidery software for Brother like PE-Design to boost contrast and clarity. Remove backgrounds—tools like remove.bg can make this a breeze—so your embroidery software can focus on the design, not the clutter.

- Crop and Resize: Trim your image to the intended embroidery area, and resize it to match your target hoop size. Remember, your design must fit within your machine’s sewing field—not just the hoop’s outer dimensions.

3.2 Digitization Techniques: Stitch Types and Parameters

Now comes the magic: transforming your image into stitches. This process, known as digitizing, is where your creative choices shape the final look and feel of your embroidery.

- Assign Stitch Types:

- Satin Stitches: Perfect for borders, lettering, and smooth outlines—these stitches “jump” from side to side, creating a glossy, raised effect.

- Fill Stitches (Tatami): Used for large, solid areas—think backgrounds or big shapes—these provide texture and coverage.

- Running Stitches: Ideal for fine details, outlines, and delicate accents.

- Adjust Stitch Parameters:

- Density: Controls how tightly stitches are packed (commonly 0.2–0.5mm). Too dense, and you risk thread breaks; too loose, and the fabric peeks through.

- Underlay: Adds a foundation layer to stabilize the fabric and prevent puckering.

- Stitch Direction: Varying angles can add dimension and reduce pull on the fabric.

Most digitizing software—like Brother PE-Design, Ink/Stitch, or SewArt—lets you manually tweak these settings or use auto-digitizing features for quick results. For pro-level control, manual digitizing gives you the power to fine-tune every detail.

3.3 Exporting and Testing Your PES File

With your design digitized, it’s time to bring it to life:

- Export Settings: Choose the correct PES version for your machine (#PES0001 for older, #PES0040 or #PES0060 for newer models). Double-check hoop size and color assignments.

- Simulation Preview: Use your software’s stitch simulator to preview the embroidery sequence, spot potential issues, and ensure thread changes happen in the right order.

- Transfer Methods: Save your PES file and transfer it to your machine via USB, memory card, or direct connection—depending on your model.

- Test Stitching: Always run a test on scrap fabric first. This lets you catch any surprises—like density issues or missed details—before committing to your final project.

By following this workflow, you’ll turn any image into a polished, machine-ready PES file—ready to stitch out your next masterpiece.

4. Software Showdown: Free and Paid Tools for PES Creation

Choosing the right software is half the battle when creating PES files for embroidery. Whether you're a hobbyist looking for a free solution or a professional managing high-volume production, your choice of tool will shape your workflow, design quality, and sanity. Let's break down the leading options—both paid and free—so you can find your perfect match.

4.1 Professional Tools: Wilcom and Hatch

When it comes to professional-grade digitizing, Wilcom and Hatch are the heavyweights in the embroidery world. They're built for speed, precision, and the ability to handle the most complex designs you can throw at them.

Wilcom is renowned for its advanced auto-digitizing features, allowing you to convert both raster images and vector designs into embroidery-ready files with minimal fuss. The workflow is straightforward: import your artwork, let the software auto-digitize the main areas, then fine-tune the details manually. Wilcom gives you granular control over stitch types, lengths, densities, and underlay settings—essential for achieving crisp, production-ready results. Batch processing is a breeze, making it ideal for businesses handling large orders or intricate multi-layered artwork.

Hatch Embroidery strikes a balance between professional power and user-friendliness. It supports a broad array of file formats (including PES), and its Stitch Player feature lets you preview your design's stitch-out in real time—so you catch mistakes before they hit the fabric. Hatch offers both auto-digitizing for quick conversions and manual tools for those who want to obsess over every stitch. You can resize, rotate, and combine designs, manage color sequences, and tap into built-in design libraries for inspiration or rapid customization.

Why go pro?

• Auto-digitizing that actually works: Both Wilcom and Hatch excel at interpreting complex artwork, reducing the time you spend cleaning up after the software.
• Batch processing: Perfect for production environments where efficiency is king.
• Manual editing: Node-by-node control for those who demand perfection.
• Simulation and troubleshooting: Preview every color change, stitch type, and sequence before you ever touch a hoop.

Pro Tip: Both Wilcom and Hatch offer free trials, so you can test-drive their features before making a commitment. If you're serious about embroidery as a business or want the best possible results, these tools are worth every penny.

4.2 Free Solutions: Ink/Stitch and SewArt

Not ready to invest in commercial software? Don't worry—there are robust free and low-cost options that can get you started with PES file creation.

Ink/Stitch is a free, open-source extension for Inkscape, designed to transform SVG vector artwork into machine embroidery files. Its workflow is all about precision: import your SVG, assign stitch types (satin, fill, outline), tweak densities, and export directly to PES. Ink/Stitch shines with scalable vector graphics, offering fine control over every stitch parameter. The learning curve is a bit steeper—especially if you're new to vector editing—but the results can be impressive for geometric, logo, and text-based designs.

SewArt is a beginner-friendly, budget option that converts raster images (JPEG, PNG) and vectors into embroidery files. Its standout feature is image-to-stitch conversion: you can posterize and reduce colors, then let SewArt auto-digitize the shapes into embroidery regions. The interface is intuitive, making it easy to experiment with color reduction, background removal, and basic stitch assignments. However, free trial exports are limited to six colors, and the software struggles with fine gradients or photorealistic artwork.

What's the catch?

• Manual effort required: Especially with Ink/Stitch, you'll need to manually assign stitches for complex designs.
• Limited auto-digitizing: Free tools don't always handle gradients or intricate blends well.
• Learning curve: Vector-based workflows (like Ink/Stitch) require some patience to master.

YouTube Insights: Reviewers consistently praise Ink/Stitch for its flexibility and community-driven development, while SewArt is highlighted for its ease of use and quick learning curve. If you're just getting started, SewArt's image-to-stitch wizard is a great way to dip your toes in the water. For those willing to invest time in learning, Ink/Stitch offers professional-level control—without the price tag.

Bottom Line: Free tools can absolutely get you started, especially for simple or vector-based designs. For detailed gradients, intricate shading, or high-volume production, consider investing in Babylock embroidery software as your skills (and ambitions) grow.

5. Converting Images to PES: JPEG, PNG & SVG Techniques

So you’ve got a killer image—now what? Turning a JPEG, PNG, or SVG into a stitchable PES file is part art, part science. The key is to simplify, optimize, and digitize your design so your embroidery machine stitches it out cleanly and accurately.

5.1 Color Reduction and Simplification

Embroidery machines don’t do “millions of colors”—they do threads. The first step in prepping your image is to reduce the color palette to something manageable, usually 6–8 colors.

Posterization is your friend here. By reducing tonal ranges, you transform gradients and photos into distinct color blocks that can be mapped to thread. Tools like SewArt and Ink/Stitch offer posterization and palette reduction features. For images with complex backgrounds, use selective masking to isolate the design. Free embroidery software for Brother like Ink/Stitch make background cleanup a breeze, especially for PNGs with transparency.

Pro Tip:

• Selective color reduction: Apply masks to different design areas (e.g., fur, background, tongue) to control how colors are grouped.
• Palette optimization: Use your software’s palette editor to merge similar colors and minimize thread changes.
• Speckle removal: Clean up stray pixels that could turn into unwanted stitches.

Best Practices:

• Limit your palette to 6–8 colors for smoother stitching and fewer thread changes.
• Use vector masks or manual editing to fine-tune color regions before digitizing.

5.2 Raster vs. Vector Conversion Workflows

Not all images are created equal—raster (JPEG, PNG) and vector (SVG) files require different approaches.

SVG Tracing with Ink/Stitch:

SVGs are ideal for embroidery because their crisp, scalable shapes translate directly into stitch regions. Ink/Stitch excels here: import your SVG, assign stitches, and export to PES. Manual node adjustment lets you clean up paths for perfect stitch flow.

JPEG/PNG Auto-Digitizing Pitfalls:

Raster images, especially photos, are trickier. Most software (like SewArt) will auto-trace color regions, but the results depend heavily on image quality and color separation. Too many colors or fuzzy edges can lead to messy, overlapping stitches.

Manual Node Adjustment:

For the cleanest results, trace over your raster image in a vector editor (like Inkscape), simplify the paths, and then digitize. This gives you full control over stitch direction, density, and color order.

Workflow Summary:

1. Import Image: Load your JPEG, PNG, or SVG into your digitizing software.
2. Reduce Colors: Posterize and merge colors to create clear, distinct regions.
3. Trace or Convert: Use vector tracing for SVGs; auto-digitize or manually trace for rasters.
4. Assign Stitches: Map each region to a stitch type (satin, fill, running).
5. Preview and Export: Simulate the stitch-out, tweak as needed, and export as PES.

YouTube Insights:

Digitizing pros recommend always starting with the cleanest, simplest artwork possible. For gradients, try layering color blocks with feathered edges or using variegated thread for subtle blends. Always preview your stitch sequence before exporting—what looks good on screen doesn’t always stitch well in reality.

6. Advanced Optimization and Complex Design Handling

Ready to level up? When your designs get bigger, more colorful, or more intricate, optimization becomes essential. The right settings can save you thousands of stitches, prevent puckering, and keep your embroidery looking sharp—even on the trickiest fabrics.

6.1 Stitch Count Reduction Strategies

Density Adjustments: Lowering stitch density is the fastest way to cut stitch count. For example, reducing fill density from 63.5 spi (stitches per inch) to 50 spi can save hundreds of stitches in a small area. For even greater savings, drop to 40 spi—just watch for coverage gaps on thinner fabrics.

Fill-to-Satin Conversion: Where possible, replace dense fill stitches with satin stitches. Satin is ideal for borders and narrow regions, offering a glossy finish with fewer stitches. Just don’t make satin stitches too long, or you’ll risk thread snags and slow machine speed.

Exclusion Margins: Trim fill edges by 1 mm to reduce overlap and save stitches—without sacrificing visible coverage. Some software, like Stitch Era, automates this with “Critical Zone” tools.

Manual Editing: Redigitize complex elements with running stitches instead of fills, especially for fine details. This can cut stitch counts by 20–25% per object.

Automated Tools: Leverage features like Intelligent Color Sort to minimize thread changes—crucial for bulk orders. Advanced software like Hatch uses AI-driven optimization to streamline stitch paths and color sequences.

Pro Tip: Always test your optimized file on scrap fabric before running a full production batch. What saves stitches on screen should still look flawless in the hoop.

6.2 Multi-Color and Gradient Mastery

Gradients and color blends are the holy grail of embroidery—but they require careful planning.

Three-Tone Layering: To simulate gradients, use three or more color layers with feathered edges. Start with a base fill (usually the middle tone), then overlay lighter and darker shades, blending at the edges for a smooth transition.

Accordion Spacing: Adjust stitch spacing (density) within each layer to create a gradual color shift. Use linear or radial gradient settings in your software, and disable underlay stitches in gradient areas to avoid visible travel lines.

Variegated Thread: For subtle blends, variegated thread can add depth without extra color changes. Just remember: the effect is more random and less controllable than manual layering.

Preventing Travel Stitches: Careful sequencing and pathing prevent unsightly travel stitches from showing through gradient regions. Use your software’s simulation tools to preview and refine the stitch order.

YouTube Insights: Digitizing experts recommend sizing your gradients appropriately—small gradients (like chest logos) require extra attention to avoid muddiness. Always lay down a base fill, then build up the gradient in stages, adjusting density and stitch direction for the cleanest blend.

Best Practices:

- Layer colors from dark to light (or vice versa) to avoid muddy transitions.

- Reduce density by at least 10% for each new layer to prevent fabric over-saturation.

- Document your color change sequence for easy reference during stitching.

Curious about how far you can push your embroidery machine? Try these advanced techniques on a test run and see how much time, thread, and frustration you can save. The difference between a good PES file and a great one is all in the details.

Ready to take your designs to the next level? Keep experimenting, keep optimizing, and—for professional results find Brother embroidery machine dealers near me—most importantly—keep stitching!

7. Troubleshooting Common PES File Issues

Embroidery may look effortless when your machine is humming along, but any seasoned stitcher knows: the path from digital design to flawless fabric is paved with unexpected hiccups. PES files, while powerful, are not immune to glitches—whether it's a cryptic error message, a stubbornly puckered shirt, or a design that looks nothing like your screen preview. Let’s break down the most common PES file headaches and how to fix them, so you can get back to creating (instead of cursing at your embroidery machine).

7.1 Compatibility Errors and File Corruption

Few things are more frustrating than seeing “Unexpected File Format” flash on your embroidery machine’s screen. PES files are precise, but even a tiny mismatch in headers or data can cause major headaches.

Common Culprits:

- Corrupted Files: This often happens when transferring files between devices or saving in incompatible software versions. Corrupt PES files can trigger errors or even crash your embroidery software.

- PEC/PES Block Mismatches: The PES file structure includes both design data (PES block) and machine instructions (PEC block). If these get out of sync—say, from editing in multiple programs—your machine may refuse to read the file.

- Version Incompatibility: Older machines may only accept early PES versions, while newer models expect updated formats. Using the wrong version can result in unreadable files.

Quick Fixes:

- Repair Tools: Use utilities like BuzzXplore’s PES Fix Card Data to repair minor file corruptions.

- Format Conversion: If a PES file won’t open, convert it to another embroidery format (like DST) and back to PES using your digitizing software. This can “reset” the file structure.

- Import, Don’t Open: For tricky formats like PHC or EXP, use the “Import Patterns” function in PE-Design instead of direct opening.

- Check Extensions: Always use the correct lowercase `.pes` extension—typos or uppercase variants can trip up some machines.

- Hoop Size Verification: Double-check that your design’s dimensions fit your machine’s hoop. Oversized designs cause errors or distortion.

Best Practices:

- Keep a tidy folder structure and back up your designs regularly.

- Track design versions, especially when collaborating with others, to avoid overwriting or losing edits.

- For complex or commercial projects, consider working with a professional digitizer to ensure your files are error-free from the start.

7.2 Fabric Distortion Solutions

You’ve digitized the perfect design, loaded the right thread, and pressed “start”—only to find your fabric puckering like a raisin. Fabric distortion is a classic enemy of embroidery, and improper hooping is often the culprit.

Why Does Distortion Happen?

- Uneven tension during hooping causes fabric to shift or stretch as stitches are laid down.

- Traditional screw-based hoops can create pressure points, leading to “hoop burn” or puckering—especially on delicate or stretchy fabrics.

The Magnetic Advantage: MaggieFrame to the Rescue

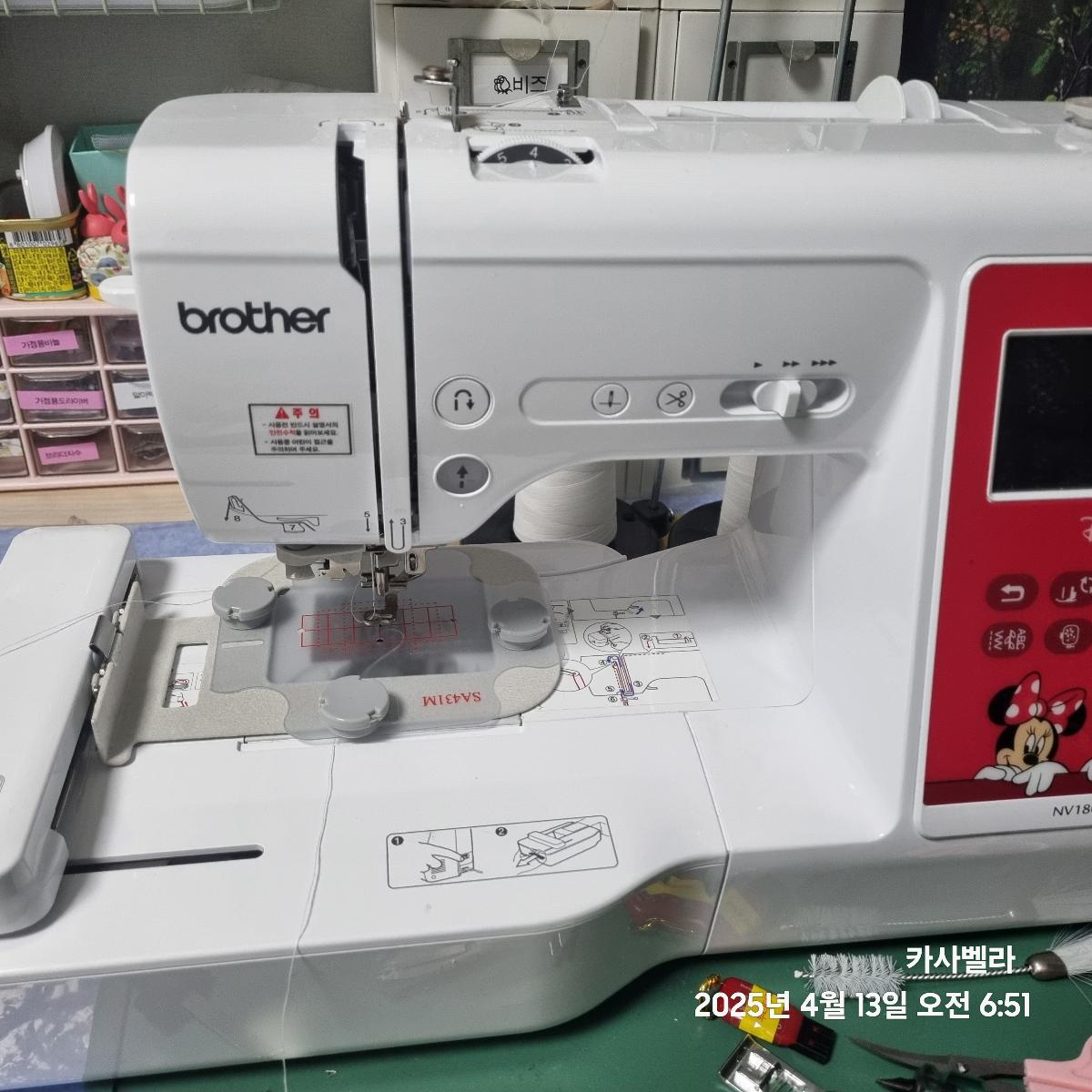

Enter magnetic embroidery hoops for Brother like MaggieFrame. Unlike traditional hoops that rely on manual screw adjustments, MaggieFrame uses a powerful magnetic system to automatically and evenly secure fabric. Here’s why that matters:

- Even Tension Distribution: The magnetic force clamps the fabric uniformly across the entire hoop area, minimizing the risk of puckering or distortion during stitching.

- No Hoop Burn: Because the pressure is spread out, you avoid the unsightly marks that screw hoops often leave behind.

- Quick and Easy Hooping: Snap the fabric in place in seconds—no more wrestling with screws or readjusting for thicker materials.

Real-World Results:

Many users report that switching to MaggieFrame’s magnetic hoops has virtually eliminated puckering and distortion in their garment embroidery projects, especially on challenging fabrics like knits or towels. The time saved on hooping and the reduction in ruined garments quickly add up—making it a smart investment for both hobbyists and high-volume shops.

Bottom Line:

If fabric distortion is haunting your embroidery, upgrading to a magnetic hoop like MaggieFrame can be a game changer. You’ll spend less time troubleshooting and more time enjoying crisp, professional results.

8. Conclusion: Mastering PES File Creation

Creating flawless PES files is both an art and a science. By focusing on design simplicity, choosing the right digitizing software, and embracing iterative testing, you can transform any image into a stitch-perfect masterpiece. Start with free tools like Ink/Stitch or SewArt to learn the ropes, then scale up as your skills grow. Remember: every great embroidery project begins with a well-crafted file and a willingness to experiment. Happy stitching!

9. Frequently Asked Questions

9.1 Q: Can I create PES files in Photoshop?

A: No. Photoshop is a raster image editor and cannot generate stitch instructions required by embroidery machines. To create PES files, you need dedicated digitizing software like Ink/Stitch, SewArt, or PE-Design, which translate images into machine-readable stitch data.

9.2 Q: Minimum text size for legible embroidery?

A: For clear, readable embroidery, text should be at least 0.25 inches tall. Satin stitches are recommended for small lettering, as they provide crisp edges and better definition at small sizes.

9.3 Q: Why do gradients fail in embroidery?

A: Thread-based embroidery can't replicate digital gradients due to the physical limits of thread blending. Unlike digital prints, embroidery relies on layering solid thread colors, making smooth color transitions difficult. For best results, simplify gradients into distinct color blocks or use layering techniques.
