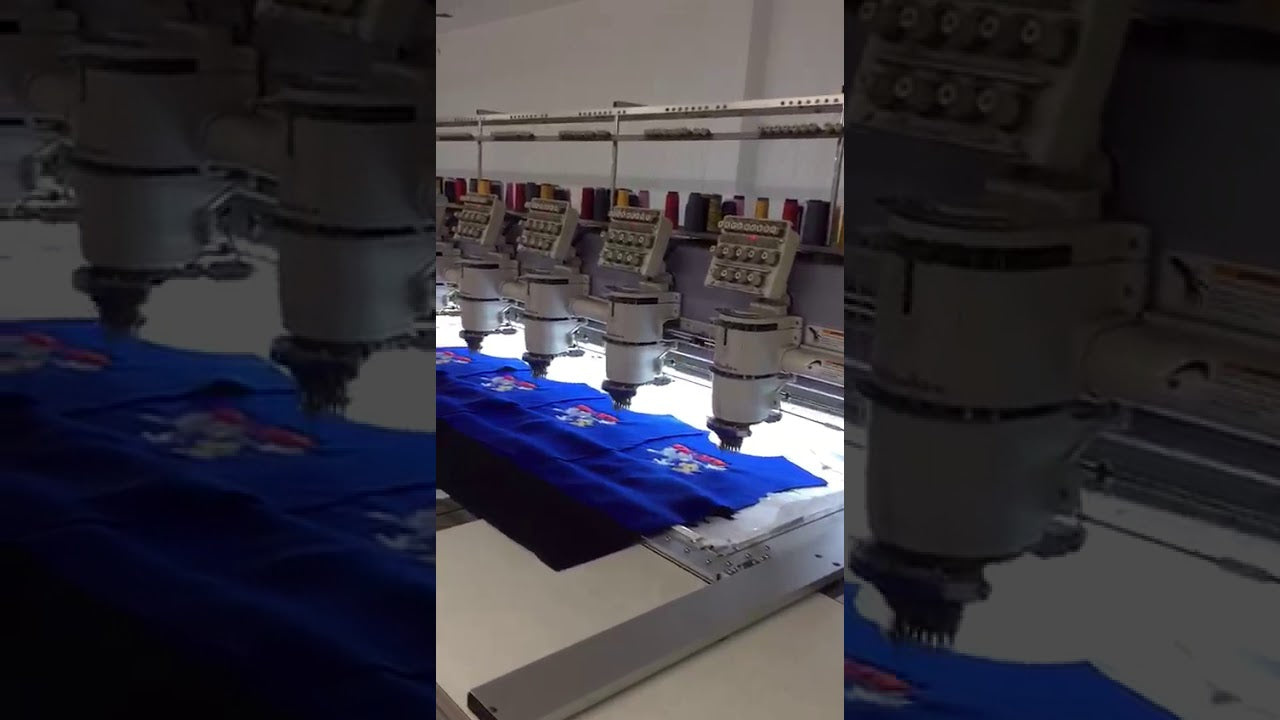

1. Introduction to Barudan 15-Head Industrial Embroidery Systems
In high-throughput embroidery, Barudan 15-head systems are recognized for durable engineering and precise stitching. Built for efficiency with advanced control and stabilization, they excel in multi-head workflows. This guide distills the key specifications, head-to-head performance notes, investment factors, setup best practices, and maintenance routines that make them a strong choice for demanding production environments.
Table of Contents
- 1. Introduction to Barudan 15-Head Industrial Embroidery Systems
- 2. Technical Specifications: Powering High-Volume Production
- 3. Competitive Analysis: Barudan vs Tajima in Commercial Settings
- 4. Investment Insights: Cost Analysis & Warranty Protection
- 5. Operational Mastery: Advanced Setup Techniques
- 6. Maintenance Protocols for Peak Performance
- 7. Conclusion: Strategic Implementation Guide
- 8. FAQ: Expert Answers to Common Concerns
2. Technical Specifications: Powering High-Volume Production
2.1 Core Performance Metrics: Speed, Needles & Embroidery Field
The Barudan 15-head embroidery platform is tuned for volume without sacrificing detail. It runs up to 1,200 stitches per minute (SPM), and each head carries 15 needles to minimize thread changes across multi-color designs. A 450x520mm embroidery field supports both compact logos and larger layouts. SmartHead technology reduces needle deflection and helps maintain consistent stitch quality across diverse fabric types.
2.2 Advanced Frame Systems & Material Handling
A broad set of frame options, including Blue Round and Oblong frames, supports varied fabric and garment types. For cap work, the Radius Cylinder Arm adds stability and precision, cutting down on plate swaps and handling errors. Purpose-built frame kits and barudan embroidery machine hoops expand mounting flexibility for production runs.
The machine also works seamlessly with third-party magnetic embroidery hoops like MaggieFrame, improving fabric stability and simplifying hooping. These accessories streamline setup, reduce handling time, and help keep outputs consistent across heads.
3. Competitive Analysis: Barudan vs Tajima in Commercial Settings
3.1 Stitch Precision in Small Text & Complex Patterns
Barudan’s Positive Needle Drive technology curbs needle deflection, which boosts clarity in fine lettering and intricate motifs. A rigid steel chassis adds stability and reduces vibration at speed, contributing to a stitch error rate of less than 1% compared with platforms that rely on standard rotary tension systems.
3.2 Cap Embroidery Workflow Efficiency
Quick Change Cap Hoops minimize transitions between flat and cap jobs. In practice, Barudan’s dedicated cap frames and servo motor-driven heads deliver faster setups and dependable repeatability. While some systems offer a larger embroidery area, Barudan’s cap-focused hardware and motion control prioritize throughput and consistent results.
4. Investment Insights: Cost Analysis & Warranty Protection
Understanding cost structure and protection helps de-risk a multi-head purchase.
4.1 Breaking Down the 5-3-2 Warranty Structure
Barudan’s 5-3-2 warranty underscores long-term reliability:
- 5 Years on the main motor
- 3 Years on electronic parts and boards
- 2 Years on remaining parts (consumables excluded)
By offsetting potential repair costs for critical components and electronics, the coverage strengthens the case for sustained, high-output use.
4.2 ROI Calculation for Commercial Operations
- Production Capacity: With 15 heads stitching simultaneously, producing 15 pieces takes only slightly more time than one, accelerating order turns.
- Magnetic Hoop Efficiency: Integrating magnetic hoops for embroidery machines like MaggieFrame reduces setup, with magnetic clamping cutting hooping time by up to 90% versus traditional methods.
- Cost Efficiency: High-speed output combined with reduced setup time lowers labor per unit and boosts margins.
These factors combine to shorten payback timelines while sustaining quality and consistency.
5. Operational Mastery: Advanced Setup Techniques
5.1 Network Integration with LEM Pro II Software
A connected workflow improves coordination across heads and machines:
- Design Management: Load files via USB or network and manage storage effectively.
- Multi-Machine Coordination: Place all machines on the same network and configure through the control panel for synchronized production.
- Troubleshooting: Follow the brand’s documentation for software protocols when diagnosing network behaviors.
5.2 Optimizing Garment Embroidery Workflows
The integration of magnetic embroidery frames like MaggieFrame can transform garment throughput:
- Rapid Fabric Changes: Magnetic clamping speeds mounting and repeatability versus screw-style hoops.
- Improved Efficiency: Stable, even tension reduces distortion and errors, elevating stitch quality.
Adopting these methods and using magnetic frames for embroidery machine setups support faster, more consistent outputs in day-to-day production.
6. Maintenance Protocols for Peak Performance
6.1 Lubrication Schedule & Critical Components
- Drive Shaft (B1): 3 drops of machine oil weekly at the top of the shaft where the wick enters.
- Hook Shaft Bushings (B2): 2 drops weekly at three points—back of the head, middle of the cylinder arm, and end of the cylinder.
- Needle Bars (B3): Biweekly wipe with an oil-saturated cotton swab from Needle 1 through Needle 15; avoid over-oiling.
This focused plan targets wear points, reduces oiling steps, and limits downtime.
6.2 Troubleshooting Electronic Thread Clamps
- Debris Removal: Clean tension disks and clamps with scrap fabric to remove lint.
- Tension Adjustment: Balance upper and bobbin tensions to prevent loops or breaks.
- Alignment Checks: Verify hook timing at 25° to avoid thread nests.
- Electrical Diagnostics: Confirm sensor calibration and stable power for electronic clamps.
Following these checks helps maintain stitch consistency and extends component life.
7. Conclusion: Strategic Implementation Guide
For scaling embroidery with consistent quality, the Barudan 15-head platform pairs speed with control. SmartHead stability, precise motion, and strong cap tooling support high-volume demands. Adding compatible accessories such as barudan magnetic hoops or MaggieFrame options reduces setup time and improves fabric stability, helping businesses boost throughput while managing costs over time.
8. FAQ: Expert Answers to Common Concerns
8.1 Q: How does the Barudan 15-head machine compare to single-head models in terms of production capacity?
A: By stitching multiple items at once, the 15-head setup drastically lowers per-piece time, making it ideal for high-volume operations.
8.2 Q: What are the key maintenance requirements for the Barudan 15-head machine?
A: Follow the lubrication schedule for the drive shaft and hook shaft bushings weekly, and care for needle bars biweekly to limit downtime.
8.3 Q: Can the Barudan 15-head machine handle complex designs and small text effectively?
A: Yes. Positive Needle Drive technology minimizes deflection, improving clarity in small text and complex patterns.
8.4 Q: What are the benefits of using magnetic hoops like MaggieFrame with the Barudan machine?
A: Magnetic clamping speeds setup, maintains even tension, and reduces hoop burn and misalignment, improving overall quality.
8.5 Q: How does the investment in a Barudan 15-head machine justify its cost?
A: High-speed production, reduced setup time, and low defect rates cut labor per unit and lift output, creating a strong return on investment over time.
