Metal Belt Embroidery Hoop for Baby Lock Machines | Strap & Collar Frame for Karate Belts, Webbing, Dog Collars, Sashes & Name Tapes

Product Description

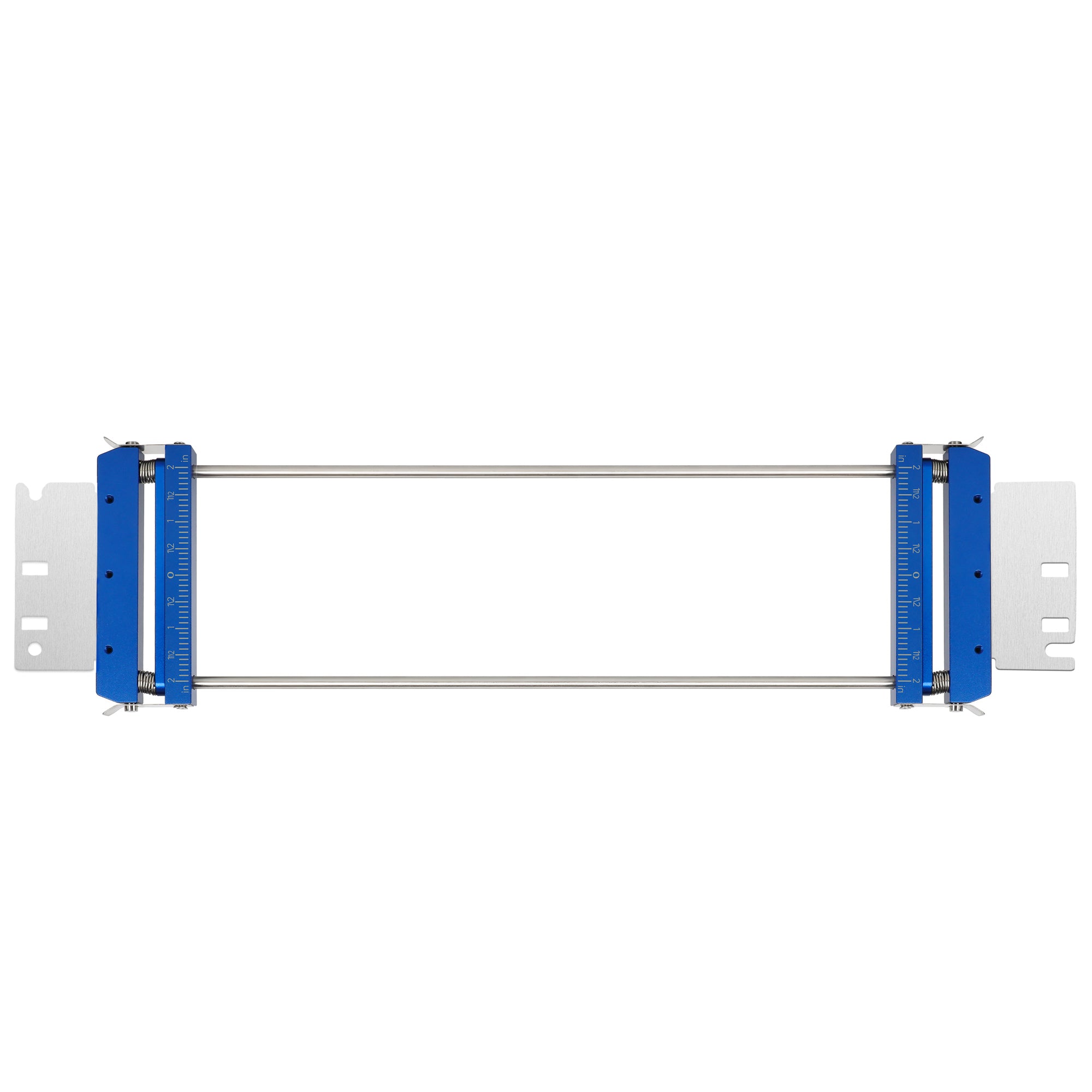

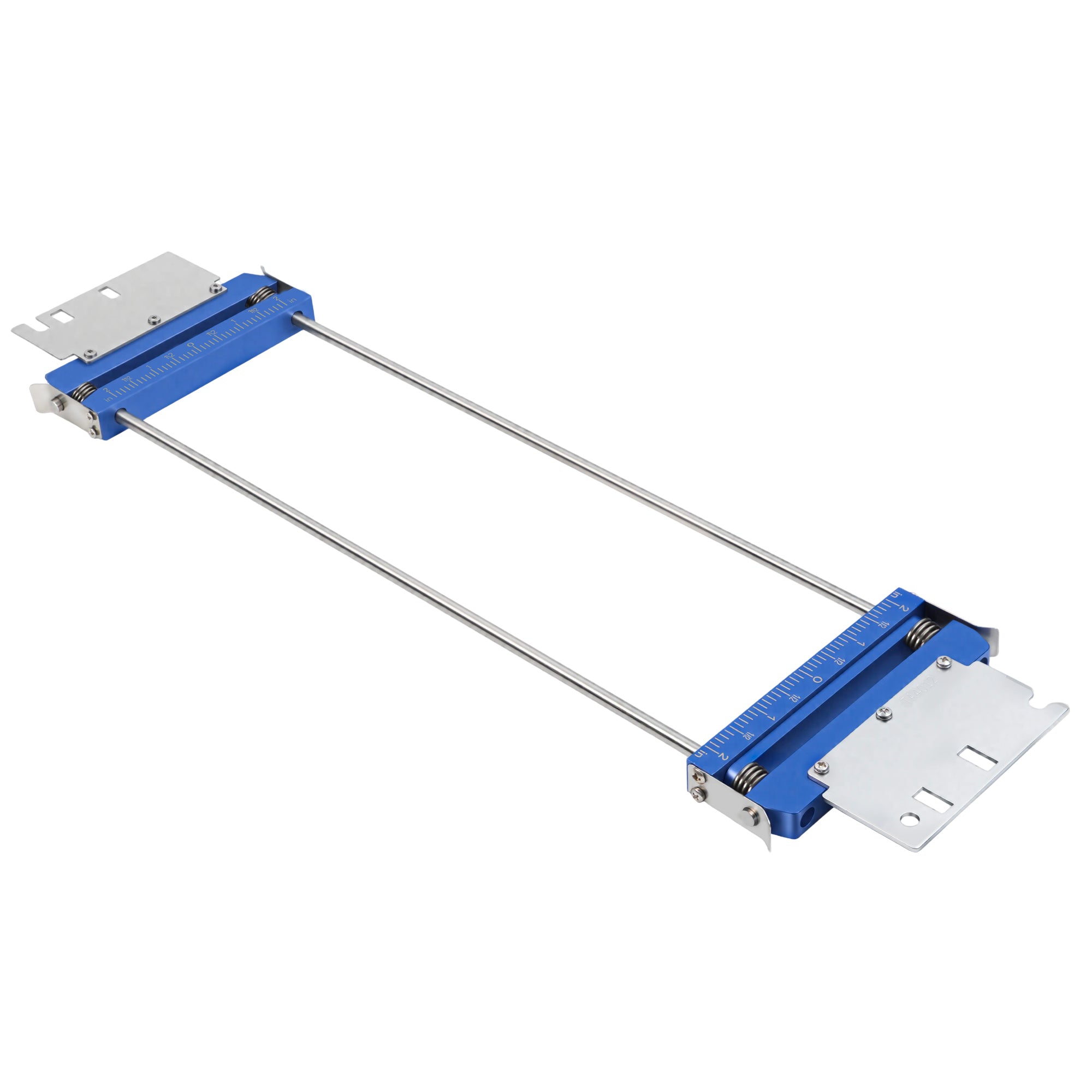

Overview The Metal Belt Embroidery Hoop is purpose-built for narrow, elongated materials—delivering clean alignment, fast hooping, and quick repeat stitching. Whether you are personalizing belts, webbing, bag straps, or dog collars, this rigid metal frame provides straight-edge support for extended text runs. Its slim profile and quick clamp bars lock narrow items securely in place, ensuring your designs stitch perfectly centered and true with no slipping or skewed text.

1. Ideal Applications Optimized for narrow materials up to 65 mm (2.6") wide, this versatile frame handles cotton, nylon, polyester webbing, edging tape, and thin soft leather. It is highly recommended for:

• 🥋 Martial Arts Belts: Karate, Taekwondo, Judo, and BJJ rank belts.

• 🐶 Pet Accessories: Dog collars, pet harnesses, and leash straps.

• 👕 Uniforms & Identification: Uniform name tapes and ID tapes.

• 🎗️ Event Ribbons: Award sashes, merit badge sashes, pageant/graduation sashes, and ceremonial ribbons.

• 🎒 Bags & Luggage: Camera straps, backpack handles, and bag straps.

• 🧵 Custom Projects: DIY craft custom webbing labels and decorative edge text.

2. Key Features & Advantages

• Precise Placement & Repeats: Dual side rulers and engraved center marks ensure long names and logos stay perfectly aligned from start to finish.

• Rock-Solid Stability: Rigid metal brackets with quick clamp bars provide a firm hold, minimizing fabric shift and puckering on sashes and delicate ribbons.

• Reduces Hoop Burn: The slim, elongated profile drastically reduces hoop burn and distortion on stiff webbing compared to traditional plastic frames.

• Fast Drop-In Installation: Slides directly onto your machine's tubular arms in seconds, reducing downtime and improving stitching quality.

3. Specifications & Materials

• Model BH-200: Embroidery Area 65 × 200 mm (2.6" × 7.8")

• Model BH-300: Embroidery Area 65 × 300 mm (2.6" × 11.8")

• Recommended Materials: Webbing, leather belts, nylon, cotton canvas, and satin ribbon. (Tip: Use a tear-away or adhesive stabilizer for thick webbing and test stitch before production).

4. Compatible Baby Lock Embroidery Machines Fully compatible with the following Baby Lock machine models:

• Baby Lock Alliance

• Baby Lock Capella

• Baby Lock Array 6

• Baby Lock Intrepid 6

• Baby Lock Endurance 6

• Baby Lock Endurance 2 BND9-2

• Baby Lock EMP6

• Baby Lock BMP6

• Baby Lock BMP8

• Baby Lock BMP9

• Baby Lock Valiant

• Baby Lock Venture ENT10

• Baby Lock Enterprise BNT10

5. Packing List

• Belt Hoop Main Part × 1 pcs

• Metal Brackets × 1 pair

• Screws & Screwdriver × 1 set (Note: Brackets are matched according to your machine brand and must be assembled onto the hoop main part using the provided screws).

6. Pro Tips & FAQ

How does this differ from a magnetic hoop?
A magnetic hoop clamps fabric with magnets, which is excellent for large, flat pieces. The metal belt hoop uses rigid bars uniquely shaped to support narrow straps and cylindrical items. This bottom and top bracket system keeps long stitches straighter and significantly reduces shifting or puckering on webbing.

How do I keep long names straight on belts or ribbons?
Use the center marks and dual side rulers on the frame for precise alignment. Run a basting stitch outline first, and ensure the strap is under even tension along the straight edges. Always leave a margin of about 0.3″ (≈7.5 mm) inside the hoop’s embroidery area to avoid border clipping.

Is there a steep learning curve for new employees?
No, training is actually faster with this belt embroidery hoop. Its secured design provides consistent tension without the trial-and-error adjustments needed for traditional screw hoops. Operators can align belts or collars quickly, avoiding uneven pulls and saving valuable production time.

What should I know before stitching thick materials?
This hoop works exceptionally well with most flat webbing straps (1–3 inches wide). When working with extra-thick padded items, always test stitch first. You may need to lower your machine's speed appropriately and reduce presser foot pressure if your machine allows it.
