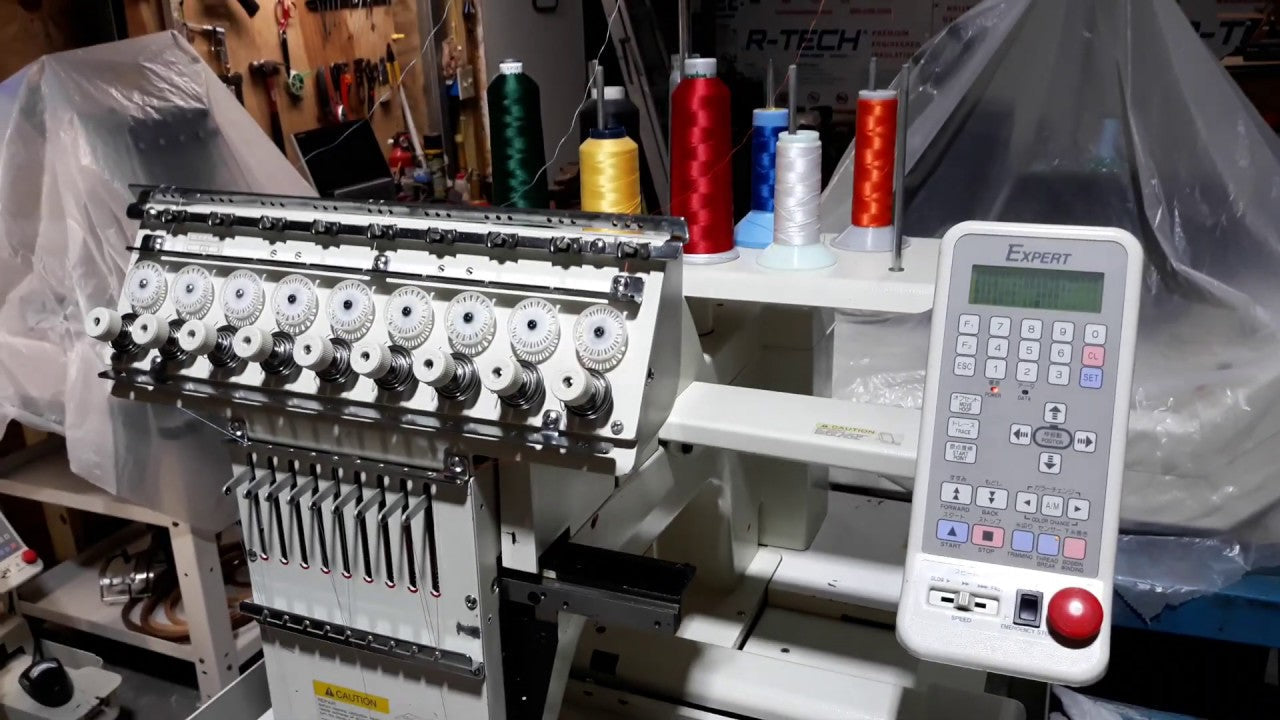

Toyota 830 Embroidery Machine: Complete Troubleshooting & Maintenance Guide

1. Introduction to Toyota 830 Maintenance Essentials

The Toyota 830 is a legend in commercial embroidery—reliable, precise, and beloved by small shops and traveling embroiderers. With age, though, come challenges: tension quirks, speed drift, mysterious errors, and the parts hunt. This guide helps you keep the 830 running: tension tuning, lubrication, timing, electronics care, and workflow upgrades. You’ll also learn how to modernize connectivity, compare performance to newer models, and find components. If you want faster garment setup, consider magnetic embroidery hoops as an accessory upgrade.

2. Troubleshooting Common Technical Issues

• Balance tension methodically before chasing electronics.
• Verify mechanical wear, then check power and capacitors.
• Moderate speed often improves stitch consistency and longevity.

2.1 Thread Tension Calibration: Bobbin vs. Top Thread

Perfect tension on the Toyota 830 blends science and touch.

Bobbin tension: The Toyota 830 manual points to 25–30 grams. Many third-party technicians like 18–22 grams for general use, reserving 25–30 grams for polyester. Calibrate via the drop test:

1. Hold the bobbin case by the thread.
2. Flick the thread downward.
3. The case should release 4–6 inches (10–15 cm) of thread. - Drops farther? Tighten ¼ turn clockwise. - Barely moves? Loosen ¼ turn counterclockwise.

Top thread tension: For polyester, 120–150 grams is commonly suggested. While the Toyota manual does not specify a fixed value, it recommends the “1/3 bobbin thread rule” on satin stitches: the pulled top thread should be about one‑third the bobbin length. If loops or imbalance persist, nudge the top tension lower and test on scrap fabric.

2.2 Resolving Speed-Related Inaccuracies at 600+ SPM

The 830 is rated to 1,000 SPM, but accuracy can slip above ~600 SPM.

Mechanical wear: - Belts and linkages: Stretching or misalignment affects timing. - Rotary hook and needle case: Dirt, wear, or desynchronization cause skips and breaks.

Electrical gremlins: - Capacitor degradation: Aging capacitors can cause unstable motor control and "Sewing Motor Lock" errors. - Power supply sag: A weakening supply can drop voltage and disrupt DC motor performance.

Troubleshooting steps: - Clean and lubricate moving parts, especially the rotary hook and needle case. - Inspect and replace worn belts. - If issues persist, have a technician evaluate motherboard capacitors and the power supply.

Forum wisdom: Replacing an aged power box (Cosel P300E-24), cleaning oil-contaminated boards, and realigning the reciprocator can dramatically stabilize speed and stitch quality. Pro tip: Running at 350–400 SPM often yields consistent stitches and extends machine life.

3. Restoration Guides for Neglected Machines

Reviving a long-idle Toyota 830 takes careful cleaning, lubrication, and electronic checks—plus patience.

3.1 Critical Lubrication Points and Component Alignment

Where to focus: - Needle case: Disassemble, deep clean, lubricate, replace worn pieces, and reassemble correctly. - Reciprocator and rotary hook: Clean and oil for free movement; binding here invites skipped stitches and breaks. - Thread wiper: Lubricate pivot points.

Best practices: - Use quality machine oil for gears and bearings. - Remove hardened or rancid grease (gentle heat helps), then re-grease. - Follow red dot oiling indicators and diagrams when available.

Alignment essentials: - Recalibrate upper/lower shaft gear linkages after disassembly. - Check pantograph belt tension and tracking. - Tighten fasteners to manufacturer-recommended torque.

3.2 Power Supply Replacement and Motherboard Care

Power supply fixes: - The 830 typically uses a Cosel P300E-24 main power box (with a smaller P15E-5). For no‑start or "Sewing Motor Lock" errors, inspect power supplies and fuses first. - Each box has an indicator light; if it’s off, suspect that supply. Many prefer replacing the entire box rather than component repair.

Motherboard maintenance: - Clean the board thoroughly and reseat connections. - Aged capacitors are common failure points; services like PLR Electronics handle replacements and repairs.

Final check: After restoring power and electronics, run full tests—move the hoop, trace, and check needle motion.

4. Modernizing Legacy Connectivity and Software

Transferring designs can feel like serial‑port time travel, but there are workable paths.

4.1 Serial-to-USB Solutions for Design Transfers

Hardware interface basics: - Cable types: Type G, H, U, or V. - Protocol settings: Baud 9600 or 38400, Data 8, Stop 2, Parity Odd, Handshaking Hardware. - Port: COM1/COM2 on legacy PCs or via adapter.

Software options: - Proprietary tools such as Ricoma PC Communication or Toyota‑specific programs; confirm that they support Toyota’s protocol. - Pantograms is widely cited for direct communication, though OS update support may be limited. - A Black Box USB reader for Toyota machines can bypass a PC entirely.

Modern PC integration: - Use a USB‑to‑serial adapter (FTDI-based for reliability). - Install current drivers, map to COM1/COM2, and match serial settings.

Cables and software can be scarce; specialty suppliers and community sources like DataStitch and Pantograms help. Always verify OS compatibility.

5. Performance Comparison: Toyota 830 vs. Modern Machines

When you compare eras, you see where the 830 still shines—and where modern machines pull ahead.

5.1 Speed and Precision Limitations at 1,000 SPM

The Toyota 830 is a single‑head, 9‑needle machine rated at 1,000 SPM. Modern models like the Toyota ESP 9000 and 9100NET reach 1,200–1,500 SPM and offer 15 needles for complex, low‑downtime color changes.

Precision and design management: - Toyota 830: Mechanical cap systems, basic frames, limited memory, serial‑only transfers. - Modern: Quieter cap systems, larger onboard memory, USB/LAN connectivity.

Key limitations on the 830 include gear synchronization drift at higher speeds, more thread changes with 9 needles, and limited scalability.

5.2 Optimizing Garment Embroidery Efficiency

Traditional screw hoops slow you down with uneven tension and slippage. A quality magnetic embroidery hoop speeds setup and keeps fabric stable.

Enter MaggieFrame Magnetic Hoops: These magnetic solutions are a game‑changer for garment hooping (not for caps/hats). For many shops, magnetic hoops for embroidery machines cut setup time, reduce puckering, and boost repeatability.

Real‑world impact: For high garment volumes, magnetic embroidery frames can save hours, lower defects, and deliver a crisp finish.

Action step: If speed and quality matter, integrate MaggieFrame hoops into your 830 workflow.

6. Sourcing Parts and Cost-Effective Upgrades

Choose reliable sources, maintain proactively, and add targeted accessories to extend your 830’s working life.

6.1 Trusted Suppliers for Obsolete Components

Where to look: - DataStitch.com: New/refurb parts, manuals, and technical guidance. It’s also a good place to watch for a used embroidery machine for sale. - Digitsmith: Peer marketplace for used units and parts. - Etsy & Unley Sewing: Refurbished AD830 machines and references to 9‑needle versatility. - PLR Electronics: Board repairs, capacitor replacements, and USB upgrade kits.

Buyer beware: Counterfeits from unverified sources may be tempting but risky. Stick to reputable sellers.

Maintenance strategy: Clean and oil assemblies (needle case, rotary hook), use quality thread and needles, hold bobbin tension around 25–30 g, and lean on manuals and community forums for DIY fixes.

6.2 Magnetic Hoop System Integration

MaggieFrame hoops provide a fast, repeatable garment‑hooping upgrade on the Toyota 830. For many workflows, dependable embroidery machine hoops improve stability and reduce hoop burn without hardware modifications.

Installation outline: 1. Choose the right size (over 17 options) for your projects. 2. Attach the bracket to the hoop arms. 3. Hoop the garment, align using reference lines, and let the magnets engage. 4. Start stitching with consistent tension batch after batch.

Workflow benefits: Time savings, fewer defects, and less operator strain. For even more repeatability, pair your hoops with a magnetic hooping station.

7. Conclusion: Maximizing Your 830's Lifespan

The Toyota 830 rewards proactive care. Clean and lubricate critical points, replace worn parts, and keep electronics—especially power supplies and capacitors—healthy. Modernize design transfers where practical, adopt efficiency‑boosting accessories, and source components from trusted suppliers. With steady maintenance and smart upgrades, your 830 can deliver dependable stitches for years to come.

8. FAQ: Toyota 830 Expert Insights

8.1 Q: What does the "Sewing Motor Lock" error mean on a Toyota 830?

A: It often points to power or motor control issues. Inspect the Cosel P300E-24 power box and its fuse first. If the indicator light is off, the supply may need replacement. Also check for aged capacitors or oil on the motherboard.

8.2 Q: Which thread types and needle sizes work best with the Toyota 830?

A: Use 40wt polyester top thread with Organ DBxK5 75/11 needles. Maintain bobbin tension at 25–30 grams and adjust top tension by fabric and thread. Always test on scrap first.

8.3 Q: How do I transfer embroidery designs to the Toyota 830 from a modern computer?

A: Use a 25‑pin serial connection and compatible software (e.g., DataStitch or Pantograms). If you lack a serial port, use an FTDI USB‑to‑serial adapter, assign COM1/COM2, and match the baud rate, parity, and stop bits.

8.4 Q: Where can I find reliable service manuals or diagrams for the Toyota 830?

A: Community resources like DataStitch, Digitsmith, and user forums supply manuals, diagrams, and troubleshooting guides with lubrication points and repair tips.

8.5 Q: Are there firmware or software updates available for the Toyota 830?

A: The 830 uses legacy firmware and does not support modern software updates. Third‑party adapters like a Black Box can simplify design transfers without altering original hardware.

8.6 Q: What’s the best way to prevent thread breaks and skipped stitches?

A: Clean and lubricate the rotary hook, needle case, and thread path. Use quality threads and needles, set tensions correctly, stabilize fabric, and check belts, alignment, and capacitors if issues persist.
