Brother Embroidery Machine Troubleshooting: Fix Thread Breaks, Power Failures, and USB Errors

1. Introduction to Brother Embroidery Machine Troubleshooting

Brother embroidery machines are beloved for their reliability and creative potential, but even the best machines occasionally throw a wrench into your workflow. Whether you're a seasoned embroidery pro or just starting out, you've likely faced issues like thread breaks, mysterious error codes, or a stubborn USB drive that refuses to cooperate. The good news? Most of these headaches can be resolved with a systematic troubleshooting approach.

In this guide, we'll walk you through the most common Brother embroidery machine problems—mechanical failures, electrical glitches, operational errors, and essential preventive maintenance. By learning how to diagnose and address these issues step by step, you'll save valuable time, avoid unnecessary repair costs, and keep your creative momentum going strong. Ready to master your machine's quirks and get back to flawless stitching? Let's dive in.

2. Resolving Mechanical Failures: Threads, Tension, and Bobbins

Mechanical hiccups—like snapped threads, wonky tension, or bobbin mysteries—can bring any embroidery project to a screeching halt. Luckily, most of these issues have clear causes and straightforward fixes. Let’s break down the solutions for the most common mechanical failures you’ll encounter.

2.1 Stopping Thread Breaks and Tension Errors

Common Causes:

• Incorrect thread tension: If your tension is too tight or too loose, the thread may snap or create uneven stitches.
• Damaged or incompatible needles: Bent, dull, or the wrong type of needle (e.g., using a sharp needle on stretch fabric) can cause friction and breakage.
• Lint and debris buildup: Accumulated lint in the tension discs or bobbin case can obstruct thread movement.

Step-by-Step Solutions:

1. Adjust Thread Tension - Set your top thread tension dial to the recommended range (usually 3.0–4.0). - Test on a scrap piece of fabric, adjusting the tension until stitches are balanced—visible bobbin thread on the underside, minimal top thread showing.
2. Check and Replace the Needle - Inspect for bends or dullness. Replace with a Brother-compatible needle—#75/11 for lighter fabrics, #90/14 for heavier materials. - Ensure the flat side faces the bobbin case for correct installation.
3. Clean the Machine - Use a soft brush to remove lint from tension discs, take-up levers, and the bobbin case. Dental floss can help clean stubborn debris from tension plates.
4. Re-thread the Machine - Follow the threading sequence in your Brother manual, making sure the thread passes smoothly through all guides and tension discs.
5. Reset Machine Settings - Unplug your machine, wait a few moments, then plug it back in to restore default settings.

Pro Tips:

• Use high-quality thread (brands like Gutermann or Aurifil are recommended).
• Avoid metallic threads unless you’ve adjusted tension specifically for them.
• Clean and lubricate your machine regularly to prevent recurring issues.

2.2 Fixing Bobbin Thread Visibility Issues

Seeing bobbin thread on the top of your embroidery? This classic frustration usually points to tension or installation problems.

Common Causes:

• Loose top thread tension: Allows bobbin thread to surface.
• Bobbin case misalignment or damage: Scratches or improper installation disrupt thread flow.
• Improper bobbin winding or installation brother embroidery machine hoops: Unevenly wound bobbins can cause erratic stitching.

Step-by-Step Solutions:

1. Tighten Top Thread Tension - Gradually increase the top thread tension (e.g., from 3.0 to 4.0), testing after each adjustment.
2. Inspect and Replace the Bobbin Case - Remove the bobbin case and check for scratches or debris. If damaged, replace it immediately.
3. Reinstall the Bobbin Correctly - Ensure the bobbin is wound evenly and seated properly in the case. For Brother machines, align the white arrow on the bobbin case with the white dot inside the machine for optimal tension.
4. Use the Right Bobbin Type - Brother machines are designed for specific bobbin materials—use plastic or metal as specified in your manual. Using the wrong type can cause tension issues or even machine damage.
5. Check Thread Path - Make sure the thread is feeding in the correct direction (usually anti-clockwise for top-loading bobbins).

By systematically addressing these steps, you’ll restore beautiful, balanced stitches and keep your embroidery looking professional.

3. Addressing Electrical and Connectivity Failures

When your Brother embroidery machine refuses to power on, or your USB drive suddenly isn’t recognized, the culprit is often an electrical or connectivity issue. Don’t panic—most of these problems can be resolved with a few targeted checks.

3.1 Power Supply Diagnostics and Fuse Checks

Symptoms:

• Machine won’t turn on
• Power is intermittent or cuts out during use

Troubleshooting Steps:

1. Inspect the Power Cord
   • Check for visible damage (cuts, fraying). Replace the cord if you spot any issues.
   • Ensure the cord is securely plugged into both the machine and a working outlet.
2. Verify the Outlet
   • Test the outlet with another device to confirm it’s delivering power.
   • Avoid plugging your machine into overloaded power strips or outlets shared with high-wattage devices.
3. Check and Replace Fuses
   • If your machine remains unresponsive, a blown fuse could be to blame.
   • Refer to your model’s manual to locate and replace the fuse (commonly F1: 250V/3A, F2: 250V/4A).
4. Use Surge Protection
   • Power surges can damage sensitive machine components. Use a surge protector or uninterruptible power supply (UPS) to safeguard your investment.

Preventive Tip: Store power cords away from heat sources and avoid coiling them tightly to prevent internal wire damage.

3.2 Solving USB and Firmware Errors

Symptoms:

• USB drive not recognized
• Firmware update fails
• Error messages during file transfers

Troubleshooting Steps:

1. Direct USB Connection
   • Plug the USB drive directly into the machine—avoid using hubs or extenders, which can reduce power delivery and cause errors.
2. Check USB Formatting
   • Brother 770 embroidery machine requires USB drives formatted in FAT32. Reformat your drive if necessary, but remember this will erase its contents.
3. Update Firmware
   • Outdated firmware can cause compatibility issues. Visit Brother’s official website to download and install the latest updates for your model.
4. Reset the Machine
   • Sometimes, a simple reset can resolve stubborn errors. Unplug the machine, wait a few moments, then plug it back in.

Quick Reference Table:

Pro Tip: For persistent electrical or connectivity issues, schedule professional servicing every 6–12 months to ensure all internal components remain in top shape.

With these troubleshooting strategies, you’ll be well-equipped to tackle the most common mechanical and electrical challenges your Brother embroidery machine might throw your way. Ready to get back to flawless stitching? Stay tuned for the next sections, where we’ll dive into operational errors and preventive maintenance!

4. Correcting Operational Errors: Hoops, Sensors, and Files

Operational errors can feel like your embroidery machine is playing tricks on you—one minute, you’re stitching a masterpiece, and the next, you’re confronted with cryptic error codes or misaligned designs. But don’t worry: most of these hiccups stem from hoop placement, sensor calibration, or file mishaps, and each has a clear path to resolution. Let’s walk through the fixes step by step.

4.1 Hoop Placement and Sensor Alignment Fixes

Ever had your Brother embroidery machine flash error #1003 or refuse to recognize your hoop? These issues often trace back to improper hoop attachment, sensor misalignment, or tangled threads. Here’s how to get your setup back on track:

Brother embroidery software sensor calibration

Modern Brother machines often come equipped with clever tools like sensor pens, guide beams, and needle beams. These features are fantastic for precision—but only if they’re calibrated correctly.

• Calibrating the Sensor Pen: Plug in your sensor pen, making sure to align the arrows on the connector and the machine (just like a retro mouse—don’t force it!). On your machine’s settings menu, look for “Sensor Function Calibration.” Follow the on-screen prompts: touch the indicated points on the bed of your machine, not the screen itself. This personalizes calibration to your touch, ensuring every tap is registered accurately—think of it as teaching your brother embroidery software your handwriting.
• Guide Beam Setup: The guide beam projects a red line onto your fabric, showing exactly where your stitches will land. You can move this line using plus/minus buttons on the screen or by touching your desired position with the sensor pen. This is invaluable for lining up stitch-in-the-ditch, appliqué, or decorative patterns.
• Needle Beam and Positioning: Use the sensor pen to set your needle’s starting point or adjust stitch width—just touch the spot on your fabric where you want the action to happen. For best results, always calibrate the pen first and use the built-in reference marks on your needle plate.

Pro Tip: Before every embroidery session, inspect your hoop and fabric placement. A few seconds of prep can save you hours of troubleshooting later!

4.2 USB File Recovery and Machine Recalibration

USB errors and design file mishaps can bring your creative flow to a halt, but recovery is often within reach.

Preventive Tip: Regularly back up your embroidery files and keep a spare, freshly formatted USB drive on hand. It’s like having a spare key for your creative vault.

5. Preventive Maintenance for Long-Term Performance

Want your Brother embroidery machine to run smoother than a jazz solo? Preventive maintenance is your secret weapon. A little routine care goes a long way toward minimizing downtime, prolonging machine life, and keeping your stitches crisp and clean.

5.1 Routine Cleaning and Lubrication Protocols

Step-by-Step Guide:

1. Unplug and Prep: Always unplug your machine, raise the needle, and remove the presser foot and needle before cleaning.
2. Lint Removal:

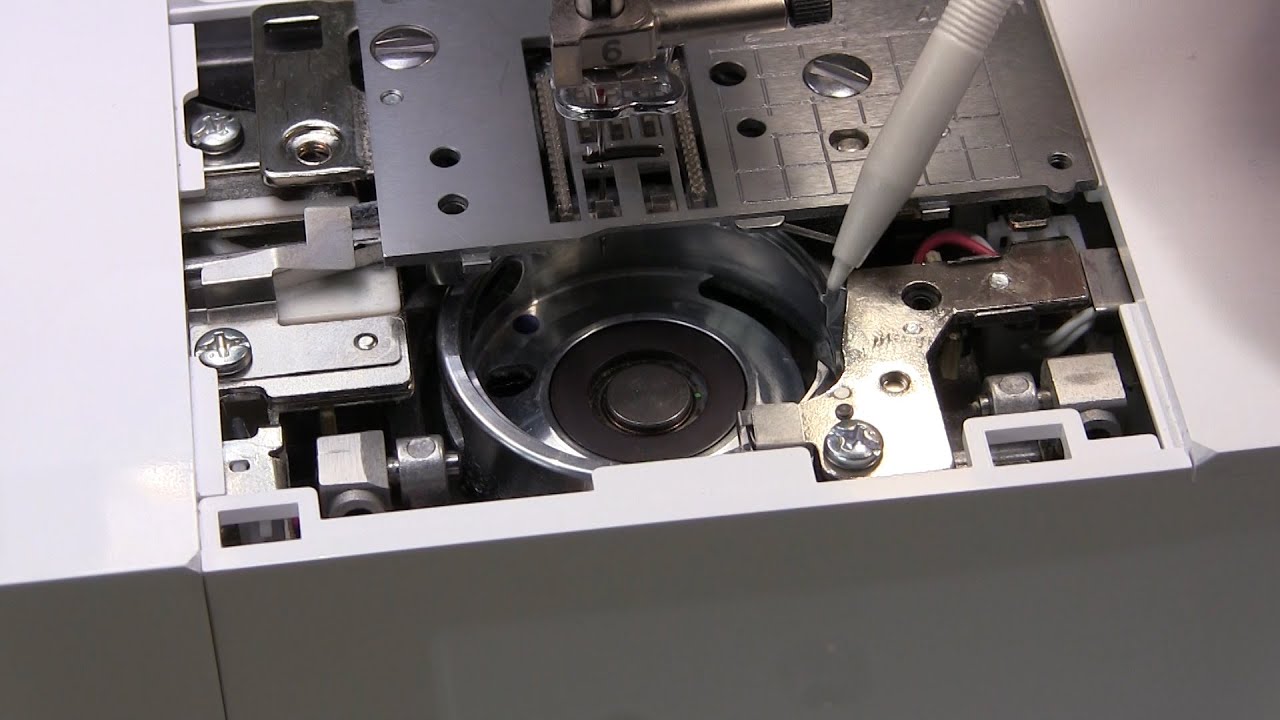

   • Race and Bobbin Area: Remove the needle plate cover, bobbin case, and rotary hook. Use a soft-bristled brush or vacuum to clear out lint and thread fragments.
   • Tension Discs: Run dental floss gently through the tension discs to dislodge stubborn debris. Compressed air or a soft cloth also works well.
3. Frame and Carriage Cleaning: Wipe the embroidery frame guide tabs and carriage with a dry cloth to keep everything moving smoothly.
4. Oiling Moving Parts:
   • Rotary Hook & Needle Bar: Add a drop of machine oil to the rotary hook and needle bar. Move the needle up and down to distribute the oil evenly.
   • Gears: Lubricate internal gears periodically, using only Brother-approved oils to avoid residue buildup.
5. Reassembly: Replace the bobbin case, aligning the triangle mark with the machine’s circle mark to prevent thread jams. Reinstall the needle and presser foot.
6. Post-Cleaning Wipe: After each session, wipe the exterior with a dry cloth to prevent dust buildup.

Maintenance Frequency:

Safety and Best Practices:

• Only use Brother-approved tools and oils.
• Store your machine in a dry, cool place.
• Never stack objects on your machine during storage or transport.

Pro Tip: Check Brother Innovis sewing machine firmware updates—these can fix bugs and improve performance, just like a tune-up for your car.

5.2 Optimizing Hooping Efficiency and Reducing Errors

Let’s face it: traditional hooping can be a time sink and a source of frustration—especially when you’re juggling large orders or tricky fabrics. Enter magnetic hoops, like MaggieFrame, which are revolutionizing the embroidery workflow for garment projects.

How Magnetic Hoops Transform Garment Embroidery

• Minimize Tension Issues: Magnetic hoops automatically adapt to varying fabric thicknesses, distributing tension evenly and preventing those dreaded hoop burns and puckering.
• Dramatic Time Savings: With MaggieFrame magnetic hoops, you can reduce hooping time by up to 90% compared to screw-based hoops. That means less fiddling, more stitching, and a happier production line.
• Effortless Operation: No more wrestling with screws or worrying about fabric slippage. Just snap the hoop in place, adjust as needed, and you’re ready to go.
• Compatibility: MaggieFrame hoops are designed to fit most Brother embroidery machines for garment projects—just make sure to select the right size and bracket for your model.

Why Choose MaggieFrame for Garment Hooping?

• Durability: Made from high-grade PPSU engineering plastic and featuring N50 magnets, MaggieFrame hoops are built to withstand heavy use and maintain their holding power over time.
• User-Friendly Design: Multiple reference lines on each hoop help you align designs quickly and accurately, reducing setup errors and wasted materials.

Pro Tip: While MaggieFrame hoops are a game-changer for garments, remember they’re not intended for caps or hats. For everything else, they’re your shortcut to professional results and a smoother workflow.

Daily inspections help spot burnout or corrosion early. Always use OEM-rated (Original Equipment Manufacturer) fuses—aftermarket parts can trigger cascading failures and void your warranty.

This process is critical for restoring precise needle movement and stitch accuracy.

Key Takeaway: When tackling advanced diagnostics, patience and precision are your best friends. Always consult your manual, use genuine parts, and don’t hesitate to reach out to the Brother community or professional technicians for support.

8. Conclusion: Mastering Your Machine’s Workflow

Troubleshooting a Brother embroidery machine is more than a fix—it’s a journey toward mastery. By embracing systematic diagnostics, regular preventive care, and the right accessories, you transform frustration into confidence and creativity. Remember: investing in quality tools and keeping up with maintenance pays off in smoother workflows and stunning results. For persistent or complex issues, don’t hesitate to reach out to professional service centers—sometimes, a fresh set of expert eyes is the best solution.

9. Frequently Asked Questions

9.1 Q: Why does my bobbin thread show on top?

A: This usually means your upper thread tension is too loose, the needle is bent or dull, or the bobbin thread is wound incorrectly. Check your tension settings, replace the needle if necessary, and ensure the bobbin is evenly wound and properly installed. Using the correct stabilizer for your fabric also helps prevent this issue.

9.2 Q: How often should I service my machine?

A: For most users, a Brother embroidery machine should be serviced every 12 to 18 months. If you use your machine heavily or for commercial purposes, consider more frequent servicing. Regular cleaning and oiling between professional services will help keep your machine running smoothly.

9.3 Q: How do I reset Brother embroidery settings?

A: To reset your Brother embroidery machine, turn off and unplug the machine. Wait a few minutes, then plug it back in and turn it on. For a full reset, press and hold the needle up/down and start/stop buttons simultaneously for a few seconds. Release the buttons and wait for the machine to reset to default settings. Always refer to your manual for model-specific instructions.
