Brother Embroidery Machine Formats: Mastering PES, DST, and File Compatibility

1. Introduction to Brother Embroidery File Formats

Navigating the world of Brother embroidery machines means getting cozy with file type for brother embroidery machine—think of them as the secret language your machine speaks. Whether you’re a seasoned pro or just starting out, understanding these formats is essential to bringing your creative visions to life without a hitch. From the precision of PES to the universality of DST and the legacy of PHC, each format comes with its own quirks, perks, and pitfalls.

But here’s the catch: file compatibility isn’t always straightforward. Maybe you’ve downloaded a dazzling design, only to discover your machine throws an error, or perhaps you’re puzzled by color mismatches and stitch limits. This guide is your roadmap. We’ll break down which formats work with which Brother models, how to transfer files via USB or Wi-Fi, what to do when your design is “too big to handle,” and how to troubleshoot those head-scratching errors. Ready to master PES, DST, PHC, and beyond? Let’s decode the embroidery file format maze together—so you can focus on creating, not troubleshooting.

Table of Contents

• 1. Introduction to Brother Embroidery File Formats
• 2. Core Brother-Compatible Formats: PES, DST, and PHC Explained
• 3. Transferring Designs to Brother Machines: USB, Wi-Fi & Cards
• 4. Resolving Format Compatibility Issues
• 5. Format Conversion and Editing Strategies
• 6. Advanced Techniques for Complex Projects
• 7. Troubleshooting Uncommon File Issues
• 8. Conclusion: Building a Seamless Brother Workflow
• 9. Frequently Asked Questions (FAQ)

2. Core Brother-Compatible Formats: PES, DST, and PHC Explained

Brother embroidery machine file formats like PES, DST, and PHC are tailored for specific needs and workflows. Let’s unravel what makes each format tick, and why choosing the right one can make or break your next embroidery masterpiece.

2.1 PES: Brother's Native Format for Precision Embroidery

PES files are the native tongue of Brother embroidery machines—a format designed for accuracy, flexibility, and color fidelity. Here’s why PES reigns supreme:

• Color Preservation: PES files retain thread color sequences and stitch density information, enabling seamless, automated color changes during stitching. No more guesswork or manual thread swapping—your machine knows exactly what to do.
• High Stitch Capacity: With support for up to 120,000 stitches per file, PES is ideal for complex, detailed designs. This makes it a go-to for intricate artwork, monograms, and multi-layered patterns.
• Model Compatibility: Most Brother machines—from the PR680W and NQ3700D to the Innov-is NV880E—embrace PES files. Whether you’re running a home studio or a commercial shop, you’re in safe hands with PES.
• Limitations: Designs exceeding 120,000 stitches? You’ll need to split them into multiple files—especially for older models like the Ultra 2001/2003D. And for advanced editing, Brother’s proprietary PE-Design software is your best friend (and sometimes, your only option).

PES is your best bet for Brother-specific projects demanding color accuracy and stitch-by-stitch precision.

2.2 DST: Universal Format for Commercial Projects

DST files, born from the Tajima legacy, are the Swiss Army knife of embroidery formats—universally recognized and widely used across brands.

• Cross-Compatibility: DST works with an impressive range of machines, including many Brother models like the NQ3700D and Family Marker FM2000D. If you’re collaborating or outsourcing, DST is often the lingua franca.
• Stitch Accuracy: Optimized for durability, DST is a staple for commercial projects—think logos, caps, and uniforms where robustness trumps complexity.
• Trade-Offs: DST files do not store thread color data. That means you’ll need to manually program thread colors on your machine, and color changes may appear as random defaults until you set them. While DST is perfect for simple, single-color, or logo work, it’s less ideal for intricate, multi-color designs where color fidelity matters.
• Use Cases: Sharing designs across brands, basic embroidery projects, and commercial runs where color automation isn’t critical.

DST is your go-to for cross-brand compatibility and rugged, straightforward designs—but be ready for some manual color wrangling.

2.3 PHC: Advanced Format for Legacy Brother Machines

PHC files are the unsung heroes for older Brother models, offering expanded capabilities for their time.

• Large-Scale Projects: PHC supports wider embroidery areas, making it suitable for legacy models like the Ultima 2002 and PR-1050X.
• Enhanced Color Control: While less common today, PHC files retain advanced color sequences and were once the standard for complex, multi-color projects on older hardware.
• Compatibility: Primarily found in older Brother machines, PHC has faded from the spotlight as PES and DST have taken center stage. Still, if you’re working with legacy equipment, PHC may be your ticket to accessing advanced features.

Format Selection Guidelines
– PES: For Brother-centric projects needing color accuracy and precision.
– DST: For cross-brand or commercial work where manual color assignment is manageable.
– PHC: For specialized, legacy systems or large-format embroidery on older machines.

3. Transferring Designs to Brother Machines: USB, Wi-Fi & Cards

Once you’ve chosen the right file format, the next hurdle is getting your design from your computer to your Brother embroidery machine. Let’s break down the most common transfer methods—so you can go from digital dream to stitched reality, hassle-free.

3.1 Step-by-Step USB Transfer with FAT32 Formatting

USB transfer is the bread and butter for most Brother users, but it’s not just a matter of plug-and-play. Here’s how to do it right:

1. Format Your USB Drive:
   • Use FAT32 formatting. Avoid NTFS, exFAT, or encrypted drives—Brother machines are picky about this!
   • If your USB is brand new, it might show up as “No Name” or “Untitled.” That’s perfectly fine.
2. Prepare Your Files:
   • Unzip any compressed files—Brother machines won’t read zipped folders.
   • For formats like .EXP+, make sure to include all related files (.BMP, .EXP, .INF).
3. Transfer Files:
   • Method A: Use Brother embroidery program PE-Design software (e.g., version 11) and select “Send to USB Media.”
   • Method B: Manually copy your embroidery files directly to the root directory of your USB drive (not inside folders, unless your machine supports it).
4. Import to Machine:
   • Insert the USB into your machine’s port—usually on the right side for models like the SE1900.
   • Use the machine’s control panel to navigate, select, and import your design.

Pro Tips and Troubleshooting:

• Always eject your USB drive properly to avoid file corruption.
• If your design isn’t showing up, double-check that the USB is formatted to FAT32 and that files are in the root directory.
• Avoid overloading your USB with too many files—machines can get overwhelmed.

Supported Formats via USB: Brother machines recognize .PES, .DST, .EXP, .EXP+, .PHC, .PHX, .PEN, .PCS, .HUS, .VIP, .SHV, .JEF, .SEW, .CSD, and .XXX formats.

3.2 Wireless Transfer via Brother Design Database

For tech-savvy embroiderers (and compatible Brother models like PR680W and PR1055X), Wi-Fi transfer is a game-changer.

1. Install Design Database Transfer (DDT):
   • Download the free, Windows-only app from Brother’s support site.
2. Connect Your Machine to Wi-Fi:
   • Ensure both your machine and computer are on the same network.
3. Transfer Files:
   • Open DDT, browse your embroidery files, and send them directly to your machine.

Supported Formats via DDT: .PES (Brother), .DST (Tajima), .EXP, .PHC, .PHX, .JEF (Janome), and .SEW (Singer).

Limitations:

• DDT is Windows-only. Mac users will need Parallels or a virtual Windows environment.
• DDT allows for thumbnail previews and organized folders, making large design libraries easier to manage.

Design Cards: While USB and Wi-Fi are the modern standards, some older Brother models support design cards (like SD cards). Simply insert the card, navigate to the card reader menu, and import your files.

Key Takeaways:

• Always verify your file format and machine compatibility before transferring.
• Use FAT32 for USB drives, and keep your files organized for easy access.
• For advanced users, Wi-Fi transfer and folder management can streamline your workflow.

Ready to stitch? With the right format and transfer method, your next embroidery project is just a click—and a hoop—away.

4. Resolving Format Compatibility Issues

Embroidery dreams can be big—sometimes, too big for your Brother machine’s stitch or color limits. If you’ve ever been greeted by a “stitch count exceeded” error or found your rainbow design reduced to a handful of colors, you’re not alone. Let’s dive into practical solutions for splitting oversized files and managing color constraints, so your creativity never gets boxed in by technical boundaries.

4.1 Splitting Large Designs Beyond Stitch Limits

Brother embroidery machines enforce a strict stitch count ceiling—typically 120,000 stitches per design file. Ambitious projects, such as detailed artwork or large text, often breach this limit, especially on legacy models like the Ultra 2001/2003D. So, how do you bring your grand vision to life? It’s all about strategic splitting and smart alignment.

Splitting Methods:

• Physical Division: Use brother digitizing software like Brother’s PE-Design 10 or Embrilliance to break your design into manageable segments. For example, split a long name into two files—“Margaret1.pes” and “Margaret2.pes”—each fitting within your hoop and stitch limit.
• Color-Based Splitting: Divide your design by thread color blocks. This not only keeps stitch counts in check but also helps organize thread changes and manage density.

Step-by-Step Workflow:

1. Assess Your Design: Open your file in embroidery software and check the stitch count. If it’s over 120,000, you’ll need to split.
2. Divide and Conquer: For text, copy your design, delete excess characters from each copy, and save as sequential files. For complex images, use built-in software tools to segment by area or color.
3. Save and Transfer: Name your files sequentially (e.g., “DesignA_1.pes,” “DesignA_2.pes”) and transfer them to your USB drive for import.

Alignment Challenges and Pro Tips:

• Rehooping Required: After stitching the first segment, you’ll need to rehoop your fabric for the next. Use alignment marks, water-soluble pens, or a tape measure to position your hoop precisely.
• Practice Makes Perfect: Test your alignment on stabilizer before committing to your final fabric. Don’t rush—slow and steady saves the project!

Real-World Example: As shown in the related YouTube tutorial, splitting a name across two files and carefully rehooping can yield seamless results. But if you misalign, don’t panic—a seam ripper and patience can undo mistakes. Always double-check your placement before hitting “start.”

Key Takeaway: Splitting designs is more art than science. With a bit of planning and the right tools, even the most ambitious embroidery projects can be stitched in sections—no creativity left behind.

4.2 Managing Color Limits in Non-PES Formats

If you’re working with DST files, you’ve probably noticed a frustrating quirk: color chaos. DST, the universal embroidery format, doesn’t store actual thread color data—meaning your Brother machine will assign default colors, often resulting in a patchwork of mismatched hues.

Solutions for DST Color Limitations:

• Manual Thread Programming: After importing your DST file, use your machine’s interface to assign the correct thread colors. Reference your original design or a color chart to match shades accurately.
• Color-Block Splitting: For designs with many color changes, consider splitting your file into separate color blocks. This reduces the risk of color confusion and helps manage stitch density.
• Software Assistance: Tools like Brother’s PE-Design allow you to map colors before exporting to DST or PES, streamlining the process.

Troubleshooting Tips:

• Preview Before Stitching: Always check the design preview on your Brother machine’s screen. If colors look off, reassign them before starting.
• Limit Color Changes: The fewer color changes, the less chance for mix-ups—especially on older or entry-level models.

Best Practices:

• Design Within Limits: When digitizing, keep your color palette manageable. Overly complex color schemes can overwhelm both the file format and the machine.
• Test Swatches: Stitch a small sample to confirm color accuracy before committing to your final piece.

Final Word: DST files are fantastic for cross-machine compatibility, but they demand a hands-on approach to color. With a little patience and planning, you can tame even the wildest color chaos and keep your designs looking sharp.

5. Format Conversion and Editing Strategies

Embroidery isn’t just about stitching—it’s about flexibility. Whether you’re converting a design for a different machine, editing a pattern for the perfect fit, or optimizing stitches for flawless results, understanding your format options and editing tools is essential. Let’s unravel the differences between PES, DST, and EXP, and explore the best software for conversion and advanced editing.

5.1 PES vs DST vs EXP: Key Differences and Use Cases

Choosing the right file format can feel like picking the right thread color—each has its own strengths and limitations. Here’s a side-by-side look at the heavy hitters:

PES: - Best for brother embroidery/sewing machine projects demanding color accuracy and stitch-by-stitch precision. - Supports automated color changes, specialty stitches, and large stitch counts.

DST: - Universal format, ideal for commercial work and cross-brand sharing. - Requires manual color programming and offers limited post-editing.

EXP: - Favored for post-digitizing edits and complex design tweaks. - Primarily used with Melco and Bernina systems.

PHC: - Specialized for large-scale, advanced projects on premium Brother models.

Recommendations: - Use PES for projects where color accuracy and editability are paramount. - Choose DST for commercial or collaborative work, but be ready for manual color setup. - Opt for EXP if you need to tweak stitch sequences after digitizing.

Trends: - Newer PES versions offer enhanced multi-needle color change support. - DST remains the go-to for interoperability, despite its color limitations. - PHC is reserved for high-end, large-format Brother machines.

---

5.2 Professional Conversion Tools: Wilcom vs PE-Design

When it comes to converting embroidery files, not all software is created equal. Here’s how the leading tools stack up:

Conversion Best Practices: - Format Selection: Convert to PES for Brother machines, DST for universal compatibility. - Quality Preservation: Adjust stitch direction and density during conversion to avoid distortion. - Color Management: Map thread palettes to match your machine’s system. - Stitch Optimization: Reduce density as needed for Brother’s tighter stitch formation.

Free vs. Paid Tools: - Free options like Ink/Stitch and Artspira are great for basic conversions. - Paid options like PE-Design 11 and Wilcom TrueSizer offer advanced features and better quality control.

Pro Tip: Always test converted designs on scrap fabric before stitching your masterpiece. Minor tweaks can make a major difference in the final result.

---

5.3 Editing PES Files: Resizing, Recoloring and Sequencing

Editing is where your embroidery vision truly comes to life. Brother’s PE-Design 11 software is a powerhouse for PES file manipulation, offering a suite of tools for resizing, recoloring, and optimizing stitch order.

Key Features: - Resizing: Adjust design size while maintaining stitch density (aim for 6–8 stitches per inch for satin stitches). - Recoloring: Map thread colors manually or use Intelligent Colour Sort to minimize thread changes. - Sequencing: Rearrange stitch order to reduce thread breaks and improve efficiency. - PhotoStitch™: Convert images into embroidery patterns with adjustable density and color mapping. - Batch Processing: Streamline edits for multiple designs at once.

Editing Workflow: 1. Import Your Design: Open your PES file in PE-Design 11. 2. Resize and Optimize: Use density controls to scale your design up or down without losing quality. 3. Recolor: Assign thread colors to match your project, especially when converting from DST or other formats. 4. Sequence: Optimize the stitching order for fewer stops and thread changes. 5. Preview: Simulate the stitch-out to catch any issues before you start.

Best Practices: - Always stay within the 120,000-stitch limit for Brother machines. - Test edits on scrap fabric to ensure your changes translate well to the real world. - Regularly update your software for compatibility with the latest Brother models.

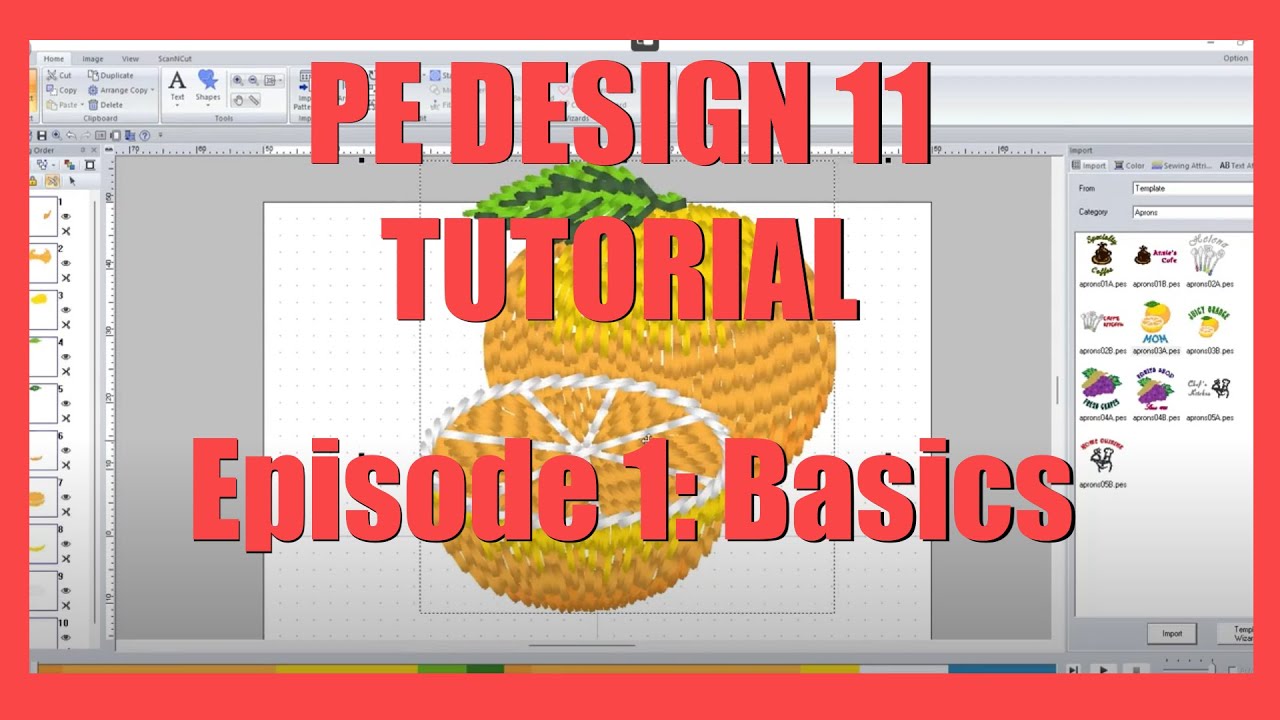

Inspiration from the Pros: As seen in YouTube tutorials, PE-Design’s beginner and expert modes cater to all skill levels. Whether you’re tweaking a monogram or digitizing a photo, the software’s intuitive interface and robust features make editing a breeze.

---

6. Advanced Techniques for Complex Projects

Ready to push the boundaries of your Brother embroidery machine? Advanced projects demand more than just basic file handling—they require creative conversion workflows, smart optimization, and the right tools for the job. From free software hacks to professional-grade garment hooping, here’s how to tackle even the most challenging designs.

6.1 Free Conversion Workflows for Non-Standard Formats

Not every design comes in a Brother-friendly format. Thankfully, a range of free and budget-friendly tools can help you bridge the gap. Popular Tools: Step-by-Step: JPG/PNG to PES (Free Tools) 1. Import Image: Load your image into Ink/Stitch, SewArt, or an online converter. 2. Auto-Digitize: Use the software’s auto-digitizing feature to generate stitch paths. 3. Color Mapping: Manually assign thread colors if needed. 4. Export as PES: Save your file, ensuring it meets Brother’s compatibility requirements. DST to PES Conversion: - Import your DST file into Ink/Stitch, SewArt, or PE-Design. - Adjust stitch density and manually map colors (since DST lacks color data). - Export as PES, keeping stitch count within 120,000. Common Challenges & Solutions: Best Practices: - Always test converted files on scrap fabric. - Use batch processing tools for large design libraries. - Prioritize PES for Brother machines to retain color and stitch data. ---

6.2 Optimizing Large Designs for Entry-Level Machines

Entry-level Brother machines can handle big ideas—but only if you optimize your files and workflow. Here’s how to keep your stitches smooth and your needles intact: Density Adjustments: - Use auto density adjustment (Stitch-to-Block) to recalibrate stitch counts when resizing. - Scale designs down by 60% or up by 200% while maintaining stitch quality. - Manually tweak density for custom effects using software like My Design Snap or Hatch. Stitch Reduction Strategies: - Sequence color changes to minimize thread cuts. - Split large designs into sections for smaller hoops—multi-hooping is your friend. - Choose appropriate stitch types (satin, fill) to match your fabric and design complexity. Multi-Color Workflow: - Rearrange thread palettes in your software to optimize thread usage. - Use high-quality threads and keep tension discs clean to prevent breaks. Needle Break Prevention: - Adjust top tension for balanced stitching. - Use stabilizers like fusible poly mesh or sticky tear-away to keep fabric taut. - Avoid over-tightening fabric in the hoop. Summary Table: Optimization Techniques Key Stat: Magnetic hoop for Brother PR-series machines, like MaggieFrame, enable 73% faster repositioning compared to traditional screw hoops—making multi-hooping large designs a breeze. ---

6.3 Garment Embroidery Efficiency with Magnetic Hoops

When tackling large garment designs, stability is everything. Enter Magnetic hoop for Brother PR-series machines, like MaggieFrame—is a game-changer for garment embroidery. Why MaggieFrame? - Superior Stability: Powerful magnetic clamping keeps even the thickest fabrics perfectly flat, preventing fabric shifting during complex stitching. - Time Savings: Repositioning is up to 73% faster than with traditional screw hoops, slashing downtime between hoopings. - Precision: Guiding lines and even tension distribution reduce realignment errors, resulting in crisp, professional results every time. - Durability: Industrial-grade materials and robust magnets ensure long-lasting performance, even in high-volume production environments. Compatibility: MaggieFrame hoops are designed for garment embroidery and fit seamlessly with Brother PR-series machines, making them ideal for both home studios and commercial shops. Real-World Impact: Users report dramatic reductions in fabric waste and misalignment, plus a noticeable boost in productivity—especially on intricate, multi-hoop projects. Bottom Line: If you’re ready to upgrade your garment embroidery workflow, MaggieFrame magnetic hoops deliver the stability, speed, and reliability you need to tackle even the most ambitious designs with confidence. --- Ready to take your Brother embroidery projects to the next level? With the right strategies for file management, conversion, and hooping, there’s no limit to what you can create.

7. Troubleshooting Uncommon File Issues

Even with the right format and a well-prepared design, embroidery files sometimes refuse to play nice on brother embroidery machine. From mysterious partial imports to DST color chaos, these uncommon file issues can turn a smooth project into a head-scratching puzzle. Let’s break down the most frequent culprits and provide you with actionable, expert-backed solutions—so you can get back to stitching with confidence.

7.1 Fixing Partial Imports and File Corruption

Nothing halts creativity like a file that only half-loads or, worse, triggers a corruption error on your Brother machine. The root causes? They range from incomplete file transfers and power interruptions to incompatible software versions or faulty storage devices. #### Common Causes - Incomplete Transfers: Interruptions during USB or network transfers can leave files half-baked. - Power Loss or USB Failure: Sudden shutdowns or unreliable drives can corrupt files. - Software Mismatch: Using outdated software or saving in an unsupported version can trip up your machine. #### Step-by-Step Solutions 1. Verify File Integrity - Use a checksum tool or simply compare file sizes between your computer and USB drive. If they don’t match, the transfer likely failed. - Try opening the file in different embroidery software (like PE-Design or Embird). If it opens elsewhere but not on your Brother, the issue may be with the file format or machine compatibility. 2. Repair or Recreate the File - Some software, such as PE-Design or Embird, includes file repair functions. Open the file and attempt to recover or re-save it in a compatible format. - If the file is beyond repair, use your original artwork to manually recreate the design. 3. Check Your USB Drive - Format your USB to FAT32, as required by Brother machines. Avoid using large-capacity or high-speed USB 3.0/3.1 drives—USB 2.0 is generally more reliable. - Ensure files are placed in the correct directory. Some machines require files to be in a specific folder created by the machine itself. 4. Update and Reset - Keep your Brother machine’s firmware and your editing software up to date. - If persistent errors occur, reset your machine to factory defaults (*Menu > Initial Setup > Reset*). This can clear software glitches that block file imports. #### Pro Tips from the Field - Eject Your USB Properly: Always use the “eject” function before removing your drive to prevent file corruption. - Use Reliable Storage: Cheap or unbranded USB drives are more prone to errors—invest in quality media. #### When All Else Fails If you’ve tried everything and your file still won’t cooperate, reach out to Brother support. Provide error logs and sample files to speed up diagnosis. ---

7.2 Resolving DST Color Mismatches in Brother Models

DST files are the universal travelers of the embroidery world—but they come with a catch: they don’t carry color data. That means your Brother machine will assign default colors, often resulting in a design that looks nothing like your original vision. #### Why Does This Happen? - No Embedded Color Info: DST files only store stitch data; thread colors are left to be interpreted by the machine or software. - Default Assignments: Brother machines use their own default color sequence, which rarely matches your intended palette. #### How to Fix DST Color Mismatches 1. Open Your DST in PE-Design - Launch Brother PE-Design or compatible software. - Import your DST file. 2. Navigate to Color Assignment - Go to the Sewing Order/Color dialog (usually under the “Sew” menu). - Select each color frame in your design. 3. Manually Reassign Thread Colors - Use the Thread Color dialog to pick the exact thread shades you want. - Repeat for each color block in your design. 4. Preview Before Stitching - Always check the design preview on your Brother’s screen. If colors look off, adjust them before starting the stitch-out. #### Alternative Approach - Try EXP Files: While EXP files also lack true color data, they sometimes retain more metadata than DST, which can help with color mapping in certain software environments. #### Best Practices - Treat DST as a Template: Always plan to manually assign colors when working with DST files on Brother machines. - Save a Color Chart: Keep a printed or digital reference of your original design’s color sequence for accurate reassignment. ---

8. Conclusion: Building a Seamless Brother Workflow

Mastering Brother embroidery file formats is about more than just picking PES or DST—it’s about understanding your machine’s language, anticipating compatibility hiccups, and using the right tools to keep your creative flow uninterrupted. Remember: PES offers native precision and color fidelity, DST brings cross-compatibility (with a bit of manual color wrangling), and strategic splitting or conversion can overcome even the toughest stitch or size limits. Always test your designs before stitching, and keep your software and firmware updated. With these habits, you’ll transform file frustrations into flawless embroidery—every single time.

9. Frequently Asked Questions (FAQ)

9.1 Q: Can I use EXP files on Brother embroidery machines?

A: Some Brother machines support EXP files, but compatibility varies by model. While EXP files may open, they might not retain all color or design details. For best results, use PES (native) or DST (universal) formats with Brother machines.

9.2 Q: Why won’t my Brother machine read DST colors correctly?

A: DST files don’t include embedded thread color data. When imported, Brother machines assign default colors, which often don’t match your intended palette. To fix this, manually reassign thread colors in your machine or use PE-Design software to map colors before stitching.

9.3 Q: How do I fix stitch limit errors on my Brother embroidery machine?

A: Brother machines typically have a stitch limit (often 120,000 stitches per file). If your design exceeds this, split it into smaller segments using embroidery software like PE-Design or Embrilliance. Save each segment as a separate file and stitch them sequentially, rehooping as needed for alignment.

9.4 Q: My file only partially imports or shows as corrupted—what should I do?

A: Check that your USB drive is formatted to FAT32, and that the file was fully transferred. Try opening the file in different embroidery software to repair or recreate it. If problems persist, update your machine’s firmware and reset to factory settings.

9.5 Q: What’s the best file format for Brother embroidery machines?

A: PES is the recommended format for most Brother machines, offering full color and design compatibility. DST is a solid alternative for universal use, but requires manual color assignment.

With these troubleshooting tips and FAQs, you’re ready to conquer even the trickiest Brother embroidery file challenges. Happy stitching!
