How to Install a Bobbin Case Correctly: Expert Guide for Perfect Stitching

1. Introduction: Mastering Bobbin Case Installation Essentials

Imagine you’re ready to start a new embroidery project, only to be derailed by a tangled mess of threads or a snapped needle. Frustrating, right? The culprit is often a poorly installed bobbin case—a small part with a big impact. Proper bobbin case installation is the unsung hero of smooth sewing on best sewing machine for embroidery and sewing, preventing machine damage and ensuring crisp, even stitches. This guide will walk you through every step, from safety checks to system-specific installation methods, and reveal expert troubleshooting and maintenance tips. Whether you’re a seasoned pro or just getting started, mastering these essentials will help you stitch with confidence and avoid those all-too-common headaches.

Table of Contents

• 1. Introduction: Mastering Bobbin Case Installation Essentials
• 2. Step-by-Step Installation Guides for Every Bobbin System
• 3. Critical Alignment Techniques to Prevent Damage
• 4. Comparing Front-Loading vs. Top-Loading Systems
• 5. Troubleshooting Common Installation Errors
• 6. Advanced Techniques for Perfect Tension & Fabric Handling
• 7. Conclusion: Key Takeaways for Flawless Operation
• 8. FAQ: Bobbin Case Installation Essentials

2. Step-by-Step Installation Guides for Every Bobbin System

Let’s dive into the heart of flawless stitching: installing your bobbin case the right way on your sewing and embroidery machine combo. Follow these detailed, system-specific steps to avoid machine mishaps and keep your stitches looking sharp.

2.1 Pre-Installation Safety & Preparation

Before you even touch the bobbin case, safety comes first. Always turn off and unplug your sewing machine—this isn’t just a suggestion, it’s a must to prevent accidental starts or electric shock. Next, raise your needle to its highest position by turning the handwheel toward you. This not only gives you clear access but also protects the needle and internal parts from damage.

Now, let’s talk cleanliness. Lint and stray threads love to hide in the bobbin area, waiting to wreak havoc. Use a small brush or a vacuum to sweep out every nook and cranny around the race area. Even a freshly cleaned machine can harbor hidden debris that leads to jams or uneven stitches.

Before installing, inspect your bobbin case under bright light—maybe even grab a magnifying glass. Look for scratches, burrs, or any rough spots. Even tiny imperfections can catch the thread, causing the dreaded “jumping” bobbin case or thread nests. If you spot any damage, swap out the case for a new one; don’t risk your project (or your sanity) on a compromised part.

Finally, make sure you’re using the correct bobbin for your machine’s class. Using the wrong type—even if it seems to fit—can lead to poor stitch quality or outright machine trouble. When in doubt, check your manual or the manufacturer’s guidelines.

2.2 Front-Loading Bobbin Case Installation

Front-loading bobbin systems are classic and reliable, but they demand precision. Here’s how to get it right:

1. Insert the Bobbin: Hold the bobbin so the thread unwinds in a clockwise direction. Place it into the bobbin case, then pull the thread through the slot and under the tension spring “finger.” You should feel a slight resistance—this means the tension mechanism is engaged.

2. Align and Insert: Grasp the bobbin case by its latch and position it so the case’s projection (a small tab or finger) lines up with the spring inside the machine’s shuttle area. This alignment is crucial—misalignment can cause needle strikes or thread tangles.

3. Secure with a Click: Gently push the case into the shuttle until you hear or feel a distinct “click.” This tactile cue tells you the case is seated correctly. The case should sit flush, with just a hint of play—enough to move slightly but not rattle around.

4. Double-Check: Some machines, like certain Brother and Singer models, use alignment dots or arrows. Make sure these marks on the bobbin case and machine housing are perfectly lined up. If your case pops out when you turn the handwheel, it’s not seated—try again.

5. Test: Turn the handwheel slowly to ensure the hook assembly moves freely around the bobbin case. If you feel resistance or hear scraping, remove and reinstall the case.

2.3 Top-Loading/Drop-In System Installation

Top-loading or drop-in systems are user-friendly and popular among modern machines. Here’s your step-by-step:

1. Bobbin Orientation: Hold the bobbin so the thread unwinds counterclockwise. Drop it into the bobbin holder, keeping the thread tail accessible.

2. Thread the Notch: Guide the thread through the designated notch and follow the threading path, pulling it around until it emerges at the correct slot. This ensures proper tension and smooth feeding.

3. Seat the Case: Gently wiggle the bobbin holder to make sure it’s fully seated. The case should sit flat within the outer ring, with a little bit of play for thread clearance—but it shouldn’t pop out or tilt.

4. Alignment Marks: Many Janome machines, for example, feature alignment marks or arrows. Line these up to guarantee proper placement. If your machine’s manual points out specific marks or notches, use them as your guide.

5. Float Test: A well-installed bobbin case will “float” just a bit—enough to move slightly when you turn the handwheel, but not enough to come loose. If it feels tight or jams, reseat it.

6. Final Check: Turn the handwheel to ensure the needle moves freely and the case stays in place. If everything feels smooth, you’re ready to sew.

3. Critical Alignment Techniques to Prevent Damage

For multi-needle embroidery machine users, proper alignment isn’t just a detail—it’s the difference between flawless stitches and a sewing disaster. Let’s break down the mechanics and universal principles that keep your machine (and your nerves) intact.

3.1 Projection-Spring Matching Mechanics

The secret to a stable bobbin case lies in matching the projection (that small nub or finger on the case) with the spring inside your machine. This isn’t just a design quirk—it’s a precision interface that keeps the case from spinning out of place during high-speed operation.

If the projection isn’t fully engaged with the spring, your machine risks needle strikes, thread tangles, and even case ejection. Manuals from top brands like Brother and Singer emphasize this alignment: look for dots, arrows, or notches as visual cues. When inserting, aim for a tactile “click” or a gentle snap—this feedback tells you the projection and spring are locked in.

YouTube demonstrations show that after seating the case, a gentle wiggle should reveal slight movement (the “float”), but the case should remain flush and stable. If it pops out or feels loose, realign and try again.

3.2 Thread Path & Tension Spring Engagement

Thread direction is not negotiable—it’s the backbone of tension stability. For front-loading cases, the thread should flow clockwise; for top-loading/drop-in systems, it’s typically counterclockwise. Always route the thread through the tension slot and under the finger or spring, feeling for that subtle resistance.

The “click” test is your friend: after threading, hold the bobbin by the thread and let it dangle. If the bobbin stays put, you’ve engaged the tension spring correctly. If it unspools or slips, rethread and try again.

Consistent thread direction and proper slot routing prevent tension fluctuations, which in turn stops thread nests and uneven stitches. Visual and tactile checks—like confirming alignment marks and feeling for that slight resistance—are your best insurance against frustrating sewing mishaps.

By mastering these installation and alignment techniques, you’ll transform bobbin case setup from a source of stress into a seamless part of your creative process. Ready to stitch with confidence? Let’s keep going!

4. Comparing Front-Loading vs. Top-Loading Systems

When it comes to bobbin case installation, the choice between front-loading and top-loading (drop-in) systems can feel like picking between a classic stick-shift and a modern automatic—each has its own quirks, strengths, and ideal use cases. Let’s break down how these systems perform in real-world applications and what that means for your sewing or embroidery workflow.

4.1 Performance Differences by Application

The heart of any sewing machine’s lower-thread system lies in its hook mechanism. Front-loading systems typically use either oscillating or rotary hooks, while top-loading systems often feature rotary hooks in a horizontal orientation. But what does this mean for your actual stitching?

Front-Loading Systems:

These are the workhorses of professional and heavy-duty sewing. The removable bobbin case allows for precise tension adjustments, making them a favorite for demanding applications like garment embroidery, quilting, and high-speed sewing. Oscillating hooks—moving back and forth—may limit stitch width (often up to 5.5mm), but they deliver exceptional stitch quality. Rotary hooks, on the other hand, spin continuously and can handle wider stitches (up to 11mm), which is great for decorative work.

Front-loading systems also accommodate both metal and plastic bobbins. Metal bobbins, with their greater thread capacity, are a boon for large projects—think marathon embroidery sessions or quilting marathons—where fewer interruptions mean more consistent results.

Top-Loading (Drop-In) Systems:

Drop-in systems are all about convenience. The bobbin sits in a built-in compartment, usually under a transparent cover, making it easy to monitor thread supply. The installation is straightforward—just drop in the bobbin (thread unwinding counterclockwise), guide the thread through the slot, and you’re set. These systems typically use plastic bobbins and are ideal for standard home sewing, lightweight to medium fabrics, and for those who value ease over granular control.

Speed and Stability:

Front-loading systems generally support higher operational speeds thanks to their robust mechanics and tension control. This is why industrial embroidery machines, such as those used in garment production, often rely on front-loading bobbin cases for both speed and stability. In garment embroidery, stability is everything—any slippage or tension issue can ruin a design. Here, magnetic solutions like MaggieFrame shine, providing unmatched fabric hold and minimizing movement, which is crucial for maintaining stitch accuracy on complex or heavy fabrics.

So, if you’re tackling heavy-duty embroidery or require rock-solid tension for professional results, front-loading is your go-to. For everyday sewing and quick changes, top-loading keeps things easy and efficient.

4.2 Ease-of-Use & Maintenance Factors

Let’s talk about what it’s actually like to live with these systems day in and day out—because the best system is the one that fits your workflow and keeps you sewing (not troubleshooting).

Thread Visibility and Bobbin Monitoring:

Top-loading systems win big here. The transparent bobbin cover lets you keep an eye on your thread supply, so you’re never caught off guard mid-seam. Front-loading systems, by contrast, require you to remove the case to check the bobbin, which can interrupt your flow.

Tension Adjustment Access:

Front-loading cases offer direct access to the tension screw, allowing for fine-tuned adjustments—perfect for those who sew with a variety of threads and fabrics. Top-loading machines usually have fixed or less accessible tension mechanisms, which limits your ability to customize for specialty applications.

Cleaning and Maintenance:

Drop-in systems are generally easier to keep clean, thanks to their enclosed design. Lint and thread debris are less likely to accumulate in hard-to-reach places. Front-loading systems, with their exposed mechanics, require more frequent and thorough cleaning, but the removable case makes deep cleaning possible, ensuring long-term reliability.

Hooping Efficiency in Garment Embroidery:

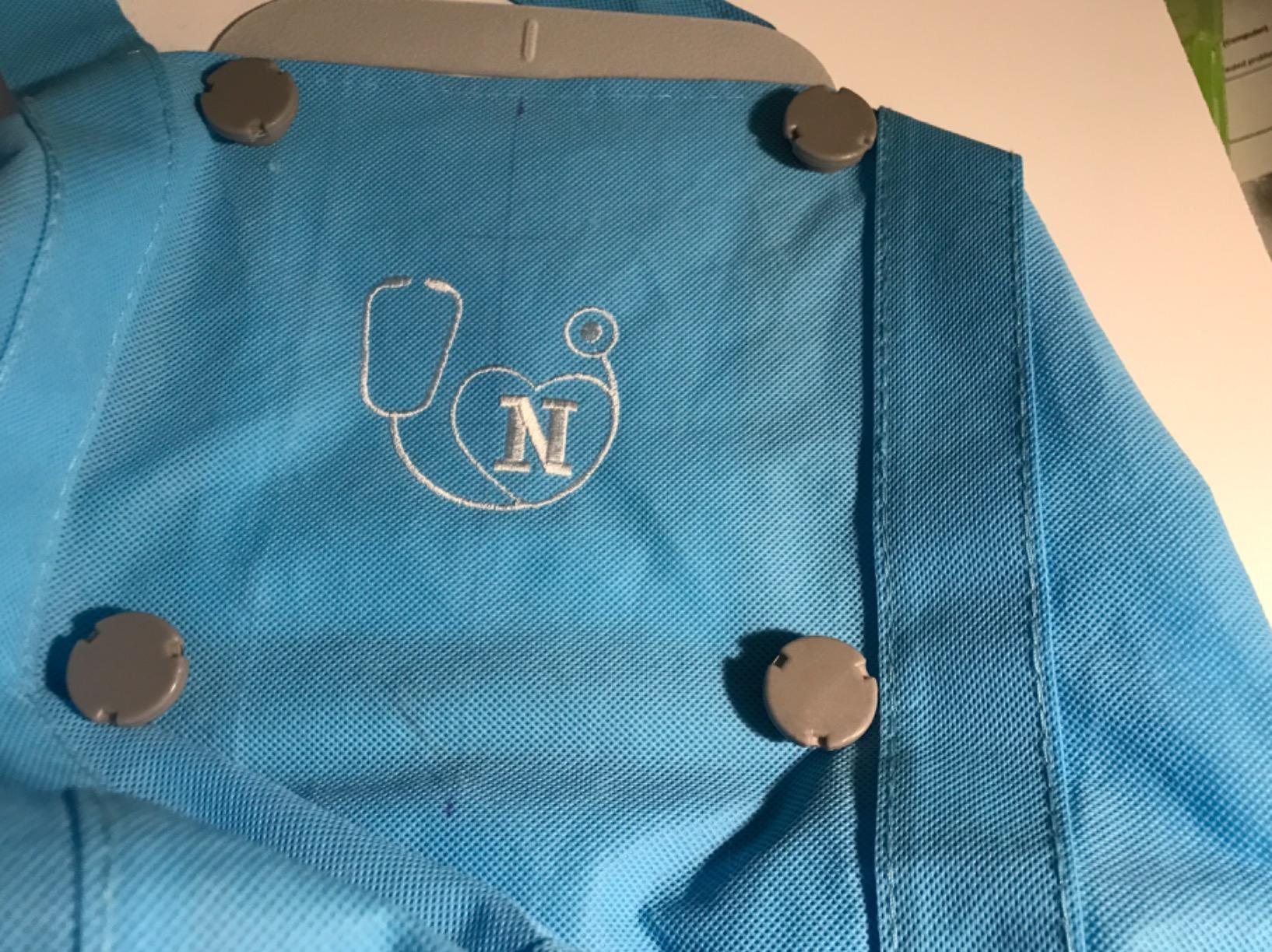

For garment embroidery, efficiency isn’t just about sewing—it’s about prepping your fabric, too. Traditional screw-based hoops can eat up valuable time with every adjustment. Magnetic embroidery hoops, like those from MaggieFrame, revolutionize this process. By leveraging a powerful magnetic system, MaggieFrame hoops reduce garment hooping time by up to 90% compared to traditional screw systems. That means what once took three minutes per garment can now be done in just thirty seconds—freeing you up for more creative work and less repetitive strain.

In short, top-loading systems offer simplicity and visibility, while front-loading systems provide control and adaptability. And if you’re in the business of garment embroidery, integrating MaggieFrame magnetic hoops into your workflow can transform your daily routine—saving time, reducing frustration, and boosting your productivity.

5. Troubleshooting Common Installation Errors

Even with the best setup, bobbin case hiccups can throw a wrench into your creative flow. Let’s troubleshoot the most common installation errors—so you can get back to stitching, not stressing.

5.1 Fixing Loose Cases & Thread Jams

Few things are more frustrating than a “jumping” bobbin case or a sudden thread nest. Here’s how to tackle these issues head-on:

Loose or “Jumping” Bobbin Cases:
If your bobbin case rattles or pops out of place, debris is often the culprit. Lint, stray threads, or even tiny fabric bits can wedge themselves into the race area, preventing the case from seating correctly. Start by turning off your machine and removing the bobbin case. Use tweezers and a lint brush to clear out all visible debris. If the problem persists, inspect the tension spring for damage—springs can lose their shape over time and may need replacing.

Thread Jams and Nests:
Thread jams usually stem from improper threading, short thread tails, or tension issues. If you experience a jam:

1. Stop Immediately: Turn off your machine to prevent further damage.
2. Remove the Fabric: Lift the presser foot and gently wiggle the fabric loose. If necessary, use small scissors to cut away tangled threads.
3. Clear the Bobbin Area: Remove the bobbin case and use tweezers to extract all thread debris.
4. Re-thread Both Top and Bobbin Threads: Follow your machine’s threading sequence precisely, ensuring the thread passes through all guides and tension discs.
5. Check Thread Tails: Leave a thread tail of at least 4 inches to prevent the bobbin thread from being pulled back into the case at startup—a common cause of jams.

Preventive Tips:

• Clean the bobbin area after every project.
• Use high-quality thread to reduce breakage and lint.
• Replace dull or bent needles regularly.
• Test tension on scrap fabric before starting your main project.

By following these steps, you’ll minimize downtime and keep your sewing sessions running smoothly.

5.2 Model-Specific Fixes for Brother/Singer/Janome

Every machine brand has its quirks, and knowing them can save you a world of frustration.

Singer (Apollo Spring Alignment):
Singer’s Apollo bobbin cases require the position finger to butt up against the position bracket inside the machine. If it’s not properly aligned, the case will rattle or jam. After seating the case, ensure it “floats” slightly—there should be a little play for thread clearance, but it must remain flush. A drop of machine oil on the case’s contact point can help reduce noise and wear.

Brother (Alignment Dots):
Brother machines often use alignment dots or arrows to guide installation. Make sure these marks on the bobbin case and machine housing are perfectly matched. If the case isn’t seated correctly, it may fall out or cause needle strikes. Always double-check alignment before closing the shuttle cover.

Janome (Red/Blue Bobbin Cases):
Janome machines, especially those with top-loading systems, use color-coded bobbin cases (red for standard, blue for free-motion quilting). Regardless of color, the case must be fully seated—if it’s not, you’ll notice excessive movement or thread issues. A correctly installed case should wiggle just a bit but stay secure. If you’re unsure, refer to your manual or watch Janome’s official installation videos for visual guidance.

Universal Advice:

• Never use a scratched or damaged bobbin case.
• Always follow the manufacturer’s threading and installation instructions.
• When in doubt, consult the OEM manual or reputable YouTube tutorials for your specific model.

With these troubleshooting strategies, you’ll be able to diagnose and fix the most common bobbin case issues. For persistent problems, visit embroidery machine repair near me for assistance.

6. Advanced Techniques for Perfect Tension & Fabric Handling

Ready to graduate from “good enough” to “flawless” stitching? Mastering advanced tension adjustment and fabric handling during bobbin case installation is the secret sauce for professional results, no matter what material you’re working with.

Precision Tension Adjustments:

The tension screw on your bobbin case is your best friend for fine-tuning. Use the “righty tighty, lefty loosey” rule: turn the screw clockwise to increase tension, counterclockwise to decrease. For best results, make changes in tiny increments—about 1/8 of a turn at a time. After each adjustment, perform a lift-test: hang the bobbin case by the thread and give it a gentle tug. The case should slide down slowly, not drop like a stone or stay frozen in place.

Fabric-Specific Settings:

• Lightweight Fabrics (Silk, Chiffon): Loosen the bobbin tension to prevent puckering and thread distortion.
• Heavy Fabrics (Denim, Canvas): Tighten the tension to ensure the needle penetrates fully and stitches lock securely.

Thread and Bobbin Coordination:

Heavier threads require looser tension, while finer threads need it tighter. Always match your bobbin thread weight to your fabric and top thread for best results.

Post-Installation Testing:

Before diving into your main project, stitch a few lines on scrap fabric. Look for balanced stitches—no loops on the top or bottom. If you spot irregularities, adjust tension in small steps and test again.

Maintenance for Consistency:

Regularly clean the tension mechanism and document your ideal tension settings (a quick smartphone photo works wonders) for future reference. This helps you return to your “sweet spot” after switching threads or fabrics.

By applying these advanced techniques, you’ll achieve crisp, even stitches on everything from delicate silks to rugged denim—turning every project into a masterpiece. Don’t just settle for “good enough”—with a little practice and patience, perfect tension and professional results are well within your reach.

7. Conclusion: Key Takeaways for Flawless Operation

Proper bobbin case installation is more than just a routine step—it’s the foundation of smooth, frustration-free sewing. Always start with safety: unplug your machine and check for any damage or lint before you begin. Remember the golden rules—thread direction matters (clockwise for front-loading, counterclockwise for top-loading), and alignment is crucial. Make sure the bobbin case projection matches the spring, and confirm that tactile “float” or “click” to avoid jams and needle breaks. Consistent maintenance not only keeps your stitches perfect but also saves you money by preventing costly repairs. For best results, practice on scrap fabric before tackling your next masterpiece. By following these habits, even with the best beginner embroidery machine, flawless stitching is always within reach.

8. FAQ: Bobbin Case Installation Essentials

8.1 Q: Why does my bobbin case keep falling out?

A: If your bobbin case keeps falling out, it’s likely due to misalignment or issues with the spring mechanism. Ensure the projection on the bobbin case is properly matched to the spring or bracket inside your machine. A correctly seated case should “float” slightly but remain secure. If the case is scratched or damaged, replace it to avoid further problems.

8.2 Q: Can I use Class 15 bobbins in a Class 66 machine?

A: No, you should never use a Class 15 bobbin in a Class 66 machine (or vice versa). Each class is designed for specific machines, and mixing them can cause tension issues, thread jams, or even damage your sewing machine. Always refer to your machine’s manual for the correct bobbin type.

8.3 Q: How often should I clean the race area?

A: Clean the bobbin race area after every project or whenever you notice lint buildup. Regular cleaning prevents debris from causing jams, uneven stitches, or bobbin case misplacement. Use a small brush or vacuum to keep everything running smoothly and extend your machine’s lifespan.
